6ES71484PC000HA0

Active

Siemens

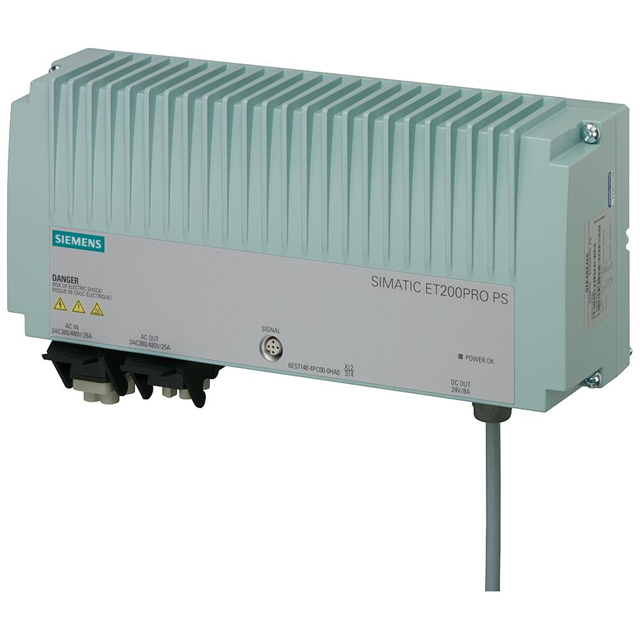

POWER SUPPLY, ET200PRO 24V/8A,IP

Search across all available documentation for this part.

Active

Siemens

POWER SUPPLY, ET200PRO 24V/8A,IP

Technical Specifications

Parameters and characteristics for this part

Specification	6ES71484PC000HA0

Approval Agency	CE, UL, EAC
For Use With/Related Products	SIMATIC ET200PRO
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	DIN Rail
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Termination Style	Screw Terminal
Type	Power Supply Module
Voltage - Supply [Max]	550 VAC
Voltage - Supply [Min]	320 VAC

Part	Termination Style	Type	For Use With/Related Products	Number of Outputs and Type	Number of Outputs and Type	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Voltage - Supply	Mounting Type	Ingress Protection	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency
Siemens 6ES71484FS000AB0	Circular	Input Output (I/O) Module	SIMATIC DP ET200 PRO	Digital	3	Digital	2	24 VDC	DIN Rail
Siemens 6ES71484CA000AA0	Circular	Power Supply Module	SIMATIC DP ET 200 PRO					24 VDC	DIN Rail	IP65 IP67
Siemens 6ES71484EB000AA0	Screw Terminal	Communications Module	SIMATIC DP ET 200 PRO					24 VDC	DIN Rail		Digital	16
Siemens 6ES71484CA600AA0	Screw Terminal	Power Measurement Module	SIMATIC DP ET 200 PRO					24 VDC	DIN Rail	IP65 IP67
Siemens 6ES71484FA000AB0	Circular	Input Module	SIMATIC DP			Digital	16	24 VDC	DIN Rail
Siemens 6ES71484FC000AB0	Circular	Input Output (I/O) Module	SIMATIC DP	Digital	4	Digital	8	24 VDC	DIN Rail
Siemens 6ES71484PC000HA0	Screw Terminal	Power Supply Module	SIMATIC ET200PRO						DIN Rail	IP67 - Dust Tight Waterproof			550 VAC	320 VAC	55 °C	-25 °C	CE EAC UL
Siemens 6ES71484EA000AA0	Screw Terminal	Output Module	SIMATIC DP ET 200 PRO					24 VDC	DIN Rail		Digital	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 803.39
