Q12P1BXXY12E
ActiveAPEM

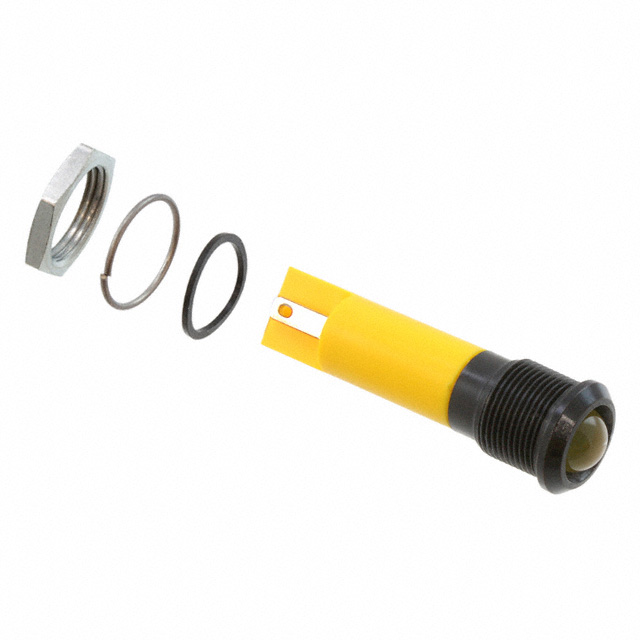

INDICATOR 12V 12MM PROMINENT YEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q12P1BXXY12E
ActiveAPEM
INDICATOR 12V 12MM PROMINENT YEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q12P1BXXY12E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Size [diameter] | 8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 50 mcd |
| Panel Cutout Dimensions | 0.47 in |
| Panel Cutout Dimensions | 11.94 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.89 | |
| 25 | $ 13.87 | |||
| 100 | $ 12.64 | |||
| 500 | $ 11.64 | |||
Description
General part information
Q12P1BXXY Series
LED Panel Indicator Yellow Diffused 60° 12V 20mA Quick Connect - 0.110" (2.8mm)
