FN379B-6-22

Active

TE Connectivity Raychem Cable Protection

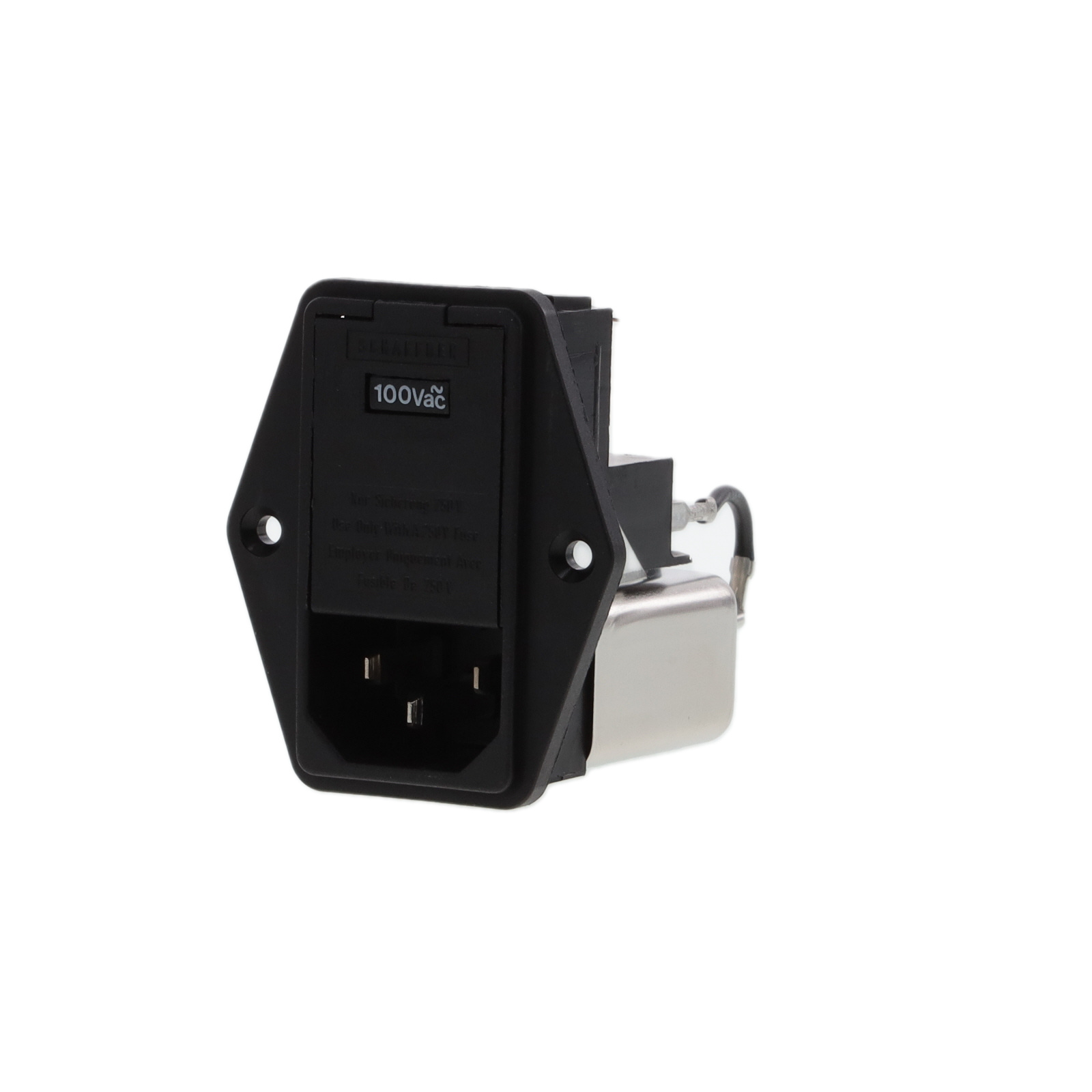

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

FN379B-6-22

Active

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN379B-6-22

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	6 A
Features	Bleed Resistor, Voltage Selector, Front or Rear Side Mount
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions	Variable Size
Panel Thickness [Max]	0.126 in
Panel Thickness [Max]	3.2 mm
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Termination	Quick Connect

FN379 Series

Part	Approval Agency	Filter Type	Panel Cutout Dimensions	Fuse Holder, Drawer	Current Rating - Filter	Ingress Protection	Material Flammability Rating	Connector Type	Connector Style	Features	Mounting Type	Termination	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]
TE Connectivity Raychem Cable Protection FN379-4-21	CSA UL VDE	Filtered (EMI RFI) - Commercial	Variable Size	Fuse Holder Twin Fused	4 A	IP40	UL94 V-2	Receptacle Male Blades - Module	IEC 320-C14	Front or Rear Side Mount Voltage Selector	Flange Panel Mount	Quick Connect	0.126 in	0.79 mm	3.2 mm	0.031 "
TE Connectivity Raychem Cable Protection FN379B-2-22	CSA UL VDE	Filtered (EMI RFI) - Commercial Medical	Variable Size	Fuse Holder Twin Fused	10 A	IP40	UL94 V-2	Receptacle Male Blades - Module	IEC 320-C14	Bleed Resistor Front or Rear Side Mount Voltage Selector	Flange Panel Mount	Quick Connect	0.126 in	0.79 mm	3.2 mm	0.031 "
TE Connectivity Raychem Cable Protection FN379B-4-22	CSA UL VDE	Filtered (EMI RFI) - Commercial Medical	Variable Size	Fuse Holder Twin Fused	4 A	IP40	UL94 V-2	Receptacle Male Blades - Module	IEC 320-C14	Bleed Resistor Front or Rear Side Mount Voltage Selector	Flange Panel Mount	Quick Connect	0.126 in	0.79 mm	3.2 mm	0.031 "
TE Connectivity Raychem Cable Protection FN379B-2-21	CE CSA UL VDE	Filtered (EMI RFI) - Commercial Medical	Variable Size	Fuse Holder Twin Fused	10 A	IP40	UL94 V-2	Receptacle Male Blades - Module	IEC 320-C14	Bleed Resistor Front or Rear Side Mount Voltage Selector	Flange Panel Mount	Quick Connect	0.126 in	0.79 mm	3.2 mm	0.031 "
TE Connectivity Raychem Cable Protection FN379B-6-22	CSA UL VDE	Filtered (EMI RFI) - Commercial Medical	Variable Size	Fuse Holder Twin Fused	6 A	IP40	UL94 V-2	Receptacle Male Blades - Module	IEC 320-C14	Bleed Resistor Front or Rear Side Mount Voltage Selector	Flange Panel Mount	Quick Connect	0.126 in	0.79 mm	3.2 mm	0.031 "
TE Connectivity Raychem Cable Protection FN379-6-..	CSA UL VDE	Filtered (EMI RFI) - Commercial	Variable Size		6 A	IP40	UL94 V-2	Receptacle Male Blades - Module	IEC 320-C14	Front or Rear Side Mount Voltage Selector	Flange Panel Mount	Quick Connect	0.126 in	0.79 mm	3.2 mm	0.031 "
TE Connectivity Raychem Cable Protection FN379-2-21	CSA UL VDE	Filtered (EMI RFI) - Commercial	Variable Size	Fuse Holder Twin Fused	10 A	IP40	UL94 V-2	Receptacle Male Blades - Module	IEC 320-C14	Front or Rear Side Mount Voltage Selector	Flange Panel Mount	Quick Connect	0.126 in	0.79 mm	3.2 mm	0.031 "
TE Connectivity Raychem Cable Protection FN379-2-22	CSA UL VDE	Filtered (EMI RFI) - Commercial	Variable Size	Fuse Holder Twin Fused	10 A	IP40	UL94 V-2	Receptacle Male Blades - Module	IEC 320-C14	Front or Rear Side Mount Voltage Selector	Flange Panel Mount	Quick Connect	0.126 in	0.79 mm	3.2 mm	0.031 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	40	$ 37.14

Description

General part information

FN379 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
