MDLSP3-3-01
ActiveEssentra Access Solutions

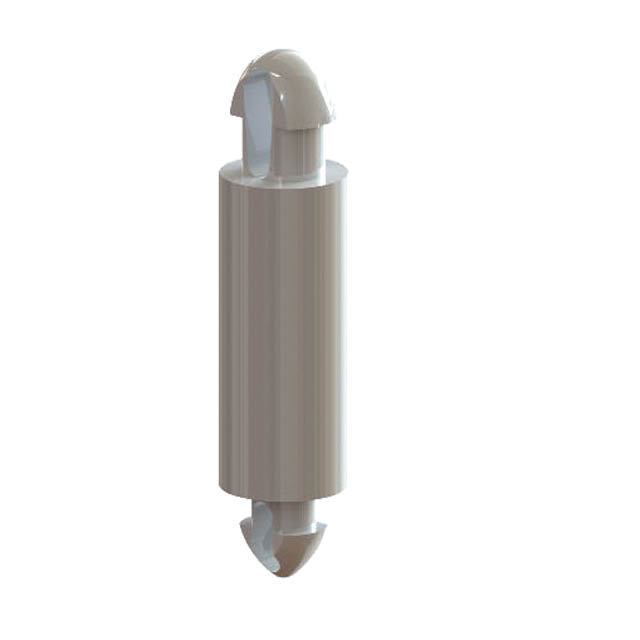

BRD SPT SNAP LOCK NYLON 4.80MM
Deep-Dive with AI
Search across all available documentation for this part.
MDLSP3-3-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 4.80MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MDLSP3-3-01 |
|---|---|
| Between Board Height | 0.189 in |
| Between Board Height | 4.8 mm |
| Holding Type | Snap Lock |
| Length - Overall [x] | 11.13 mm |
| Length - Overall [x] | 0.438 in |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 2.5 mm |
| Mounting Hole Diameter [diameter] | 0.098 in |
| Mounting Panel Thickness | 0.065 in |
| Mounting Panel Thickness | 1.65 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.079 in |
| Support Hole Diameter [diameter] | 2 mm |
| Support Panel Thickness | 0.042 in |
| Support Panel Thickness | 1.07 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.40 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.30 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.19 | |||
| 3000 | $ 0.17 | |||
Description
General part information
MDLSP3 Series
Board Support Snap Lock / Snap Lock Nylon 0.189" (4.80mm)
Documents
Technical documentation and resources
No documents available
