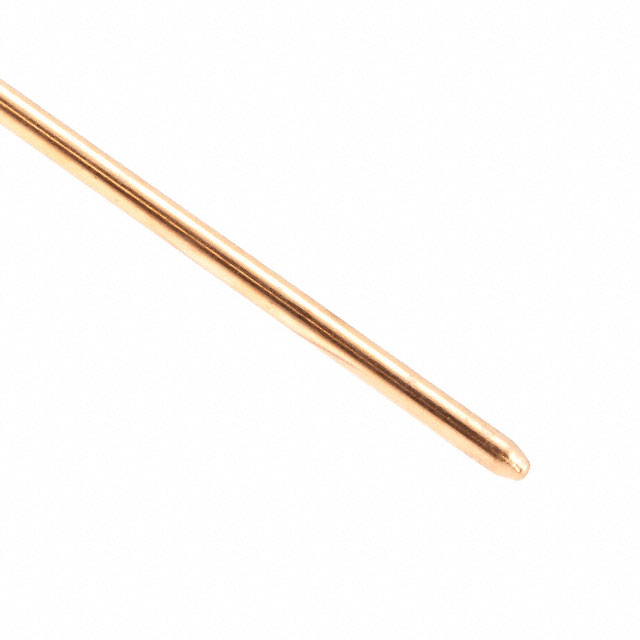

ATS-HP-D4L200G30W-001
ActiveAdvanced Thermal Solutions Inc.
LIQUID COLD PLATES, LIQUID COOLING & HEAT PIPES HEAT PIPE, ROUND, 200MM
Deep-Dive with AI
Search across all available documentation for this part.
ATS-HP-D4L200G30W-001
ActiveAdvanced Thermal Solutions Inc.
LIQUID COLD PLATES, LIQUID COOLING & HEAT PIPES HEAT PIPE, ROUND, 200MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-HP-D4L200G30W-001 |
|---|---|
| Attachment Method | Epoxy, Solder |
| Length | 7.874 in |
| Length | 200 mm |
| Material | Copper |
| Operating Temperature [Max] [custom] | 120 °C |
| Operating Temperature [Min] [custom] | 30 °C |
| Power - Cooling | 200 mm, 41 W |
| Shape | Round |
| Type | Heat Pipe |
| Wick Type | Grooved |
| Working Fluid | Distilled Water |
ATS-HP-D9.5 Series
Liquid Cold Plates, Liquid Cooling & Heat Pipes Heat Pipe, Copper, High Performance, Round, Grooved Wick, 300mm, 6mm dia.
| Part | Shape | Diameter | Diameter | Length [x] | Length [x] | Working Fluid | Attachment Method | Type | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Wick Type | Power - Cooling | Power - Cooling [custom] | Material | Length | Length | Diameter [diameter] | Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Advanced Thermal Solutions Inc. | Round | 8 mm | 0.315 in | 450 mm | 17.717 in | Distilled Water | Epoxy Solder | Heat Pipe | 30 °C | 120 °C | Sintered | 43.3 W | 450 mm | Copper | ||||
Advanced Thermal Solutions Inc. | Round | Distilled Water | Epoxy Solder | Heat Pipe | 30 °C | 120 °C | Sintered | Copper | 7.874 in | 200 mm | 6 mm | 0.236 in | ||||||
Advanced Thermal Solutions Inc. | Round | 5 mm | 0.197 " | 0.1 m | 3.937 in | Distilled Water | Epoxy Solder | Heat Pipe | 30 °C | 120 °C | Sintered | 100 mm 101.2 W | Copper | |||||
Advanced Thermal Solutions Inc. | Round | 9.5 mm | 0.374 in | 350 mm | 13.78 " | Distilled Water | Epoxy Solder | Heat Pipe | 30 °C | 120 °C | Sintered | 62.3 W 350 mm | Copper | |||||
Advanced Thermal Solutions Inc. | Round | 9.5 mm | 0.374 in | Distilled Water | Epoxy Solder | Heat Pipe | 30 °C | 120 °C | Sintered | 54.5 W | Copper | 15.748 in | 400 mm | |||||
Advanced Thermal Solutions Inc. | Round | 3 mm | 0.118 in | 0.1 m | 3.937 in | Distilled Water | Epoxy Solder | Heat Pipe | 30 °C | 120 °C | Sintered | 23.4 W | Copper | |||||
Advanced Thermal Solutions Inc. | Round | 5 mm | 0.197 " | 300 mm | 11.811 in | Distilled Water | Epoxy Solder | Heat Pipe | 30 °C | 120 °C | Sintered | 38 W 300 mm | Copper | |||||
Advanced Thermal Solutions Inc. | Round | 350 mm | 13.78 " | Distilled Water | Epoxy Solder | Heat Pipe | 30 °C | 120 °C | Sintered | 46.3 W | Copper | 7 mm | 0.276 in | |||||
Advanced Thermal Solutions Inc. | Round | Distilled Water | Epoxy Solder | Heat Pipe | 30 °C | 120 °C | Grooved | 41 W 200 mm | Copper | 7.874 in | 200 mm | |||||||
Advanced Thermal Solutions Inc. | Round | 350 mm | 13.78 " | Distilled Water | Epoxy Solder | Heat Pipe | 30 °C | 120 °C | Sintered | 71.3 W | Copper | 10 mm | 0.394 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ATS-HP-D9.5 Series
Liquid Cold Plates, Liquid Cooling & Heat Pipes Heat Pipe, Copper, High Performance, Round, Grooved Wick, 300mm, 6mm dia.
