104130-7
ActiveTE Connectivity AMP Connectors

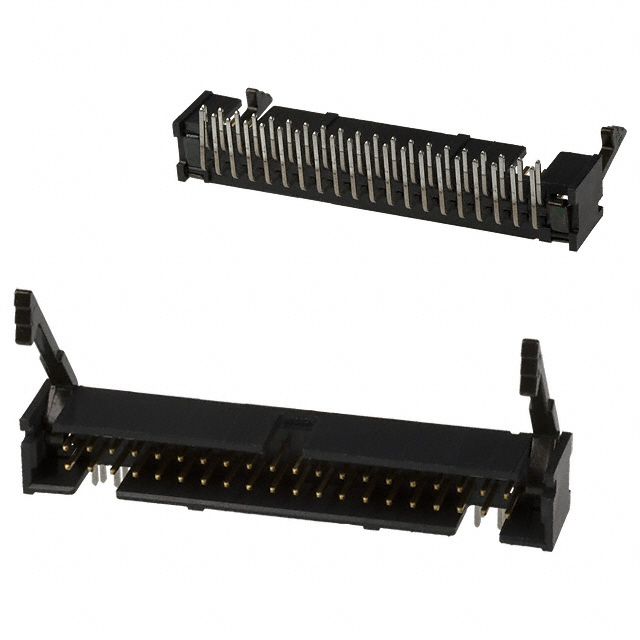

CONN HEADER R/A 40POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
104130-7
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 40POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104130-7 | 104130 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating [x] | 5.08 mm | 5.08 mm |
| Contact Length - Mating [x] | 0.2 in | 0.2 in |
| Contact Length - Post [x] | 0.135 in | 0.135 in |
| Contact Length - Post [x] | 3.43 mm | 3.43 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1 A | 1 A |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 9.14 mm | 9.14 mm |
| Insulation Height | 0.36 in | 0.36 in |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 40 | 14 - 50 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
104130 Series
CONN HEADER R/A 14POS 2.54MM
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Style | Insulation Material | Number of Rows | Contact Length - Post [x] | Contact Length - Post [x] | Fastening Type | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Termination | Current Rating (Amps) | Features | Contact Shape | Shrouding | Number of Positions | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Type | Contact Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104130-2 | 30 Áin | 0.76 Ám | Header | -65 ░C | 105 ░C | 250 VAC | 2.54 µm | 100 µin | Through Hole, Right Angle | Board to Cable/Wire | Glass Filled, Nylon, Polyamide (PA) | 2 | 0.135 in | 3.43 mm | Latch Lock/Eject Hooks | Black | 0.1 in | 2.54 mm | Gold or Gold-Palladium | Solder | 1 A | Keying Slot | Square | Shrouded - 4 Wall | 14 | All | 9.14 mm | 0.36 in | Male Pin | Brass | 2.54 mm | 0.1 in | 5.08 mm | 0.2 in | Tin-Lead |
TE Connectivity AMP Connectors 104130-9 | 30 Áin | 0.76 Ám | Header | -65 ░C | 105 ░C | 250 VAC | 2.54 µm | 100 µin | Through Hole, Right Angle | Board to Cable/Wire | Glass Filled, Nylon, Polyamide (PA) | 2 | 0.135 in | 3.43 mm | Latch Lock/Eject Hooks | Black | 0.1 in | 2.54 mm | Gold or Gold-Palladium | Solder | 1 A | Keying Slot | Square | Shrouded - 4 Wall | 50 | All | 9.14 mm | 0.36 in | Male Pin | Brass | 2.54 mm | 0.1 in | 5.08 mm | 0.2 in | Tin-Lead |
TE Connectivity AMP Connectors 104130-7 | 30 Áin | 0.76 Ám | Header | -65 ░C | 105 ░C | 250 VAC | 2.54 µm | 100 µin | Through Hole, Right Angle | Board to Cable/Wire | Glass Filled, Nylon, Polyamide (PA) | 2 | 0.135 in | 3.43 mm | Latch Lock/Eject Hooks | Black | 0.1 in | 2.54 mm | Gold or Gold-Palladium | Solder | 1 A | Keying Slot | Square | Shrouded - 4 Wall | 40 | All | 9.14 mm | 0.36 in | Male Pin | Brass | 2.54 mm | 0.1 in | 5.08 mm | 0.2 in | Tin-Lead |
TE Connectivity AMP Connectors 104130-6 | 30 Áin | 0.76 Ám | Header | -65 ░C | 105 ░C | 250 VAC | 2.54 µm | 100 µin | Through Hole, Right Angle | Board to Cable/Wire | Glass Filled, Nylon, Polyamide (PA) | 2 | 0.135 in | 3.43 mm | Latch Lock/Eject Hooks | Black | 0.1 in | 2.54 mm | Gold or Gold-Palladium | Solder | 1 A | Keying Slot | Square | Shrouded - 4 Wall | 34 | All | 9.14 mm | 0.36 in | Male Pin | Brass | 2.54 mm | 0.1 in | 5.08 mm | 0.2 in | Tin-Lead |
TE Connectivity AMP Connectors 104130-5 | 30 Áin | 0.76 Ám | Header | -65 ░C | 105 ░C | 250 VAC | 2.54 µm | 100 µin | Through Hole, Right Angle | Board to Cable/Wire | Glass Filled, Nylon, Polyamide (PA) | 2 | 0.135 in | 3.43 mm | Latch Lock/Eject Hooks | Black | 0.1 in | 2.54 mm | Gold or Gold-Palladium | Solder | 1 A | Keying Slot | Square | Shrouded - 4 Wall | 26 | All | 9.14 mm | 0.36 in | Male Pin | Brass | 2.54 mm | 0.1 in | 5.08 mm | 0.2 in | Tin-Lead |
Description
General part information
104130 Series
Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
