SY89835UMG-TR
Active2.5V, 2GHZ (3.2 GBPS) ULTRA-PRECISION, DIFFERENTIAL 1:2 LVDS FANOUT BUFFER WITH 8 VDFN 2X2X0.9MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
SY89835UMG-TR
Active2.5V, 2GHZ (3.2 GBPS) ULTRA-PRECISION, DIFFERENTIAL 1:2 LVDS FANOUT BUFFER WITH 8 VDFN 2X2X0.9MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SY89835UMG-TR | SY89835U Series |
|---|---|---|
| null | - | |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | T/R | 1 | $ 4.97 | |
| 25 | $ 4.15 | |||
| 100 | $ 3.77 | |||
| 1000 | $ 3.64 | |||
| 5000 | $ 3.61 | |||
| Newark | Each (Supplied on Full Reel) | 1000 | $ 3.89 | |
SY89835U Series
2.5V, 2GHZ (3.2 GBPS) ULTRA-PRECISION, DIFFERENTIAL 1:2 LVDS FANOUT BUFFER WITH 8 VDFN 2X2X0.9MM T/R ROHS COMPLIANT: YES
| Part |
|---|
Microchip Technology SY89835UMG-TR |
Microchip Technology SY89835UMG-TR |
Description
General part information
SY89835U Series

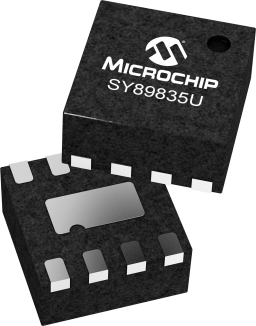

The SY89835U is a 2.5V, high-speed 2GHz differential Low Voltage Differential Swing (LVDS) 1:2 fanout buffer optimized for ultra-low skew applications. Within device skew is guaranteed to be less than 20ps over supply voltage and temperature. A unique Fail-Safe Input (FSI) protection prevents metastable conditions when no signal is present or when the selected input clock fails to a DC voltage (voltage between the pins of the differential input drops sufficiently below 100 mV).The SY89835U is part of Micrel's high-speed clock synchronization family. For applications that require a different I/O combination, consult Micrel's web site, and choose from a comprehensive product line of highspeed, low-skew fanout buffers, translators and clock generators.
Documents
Technical documentation and resources
