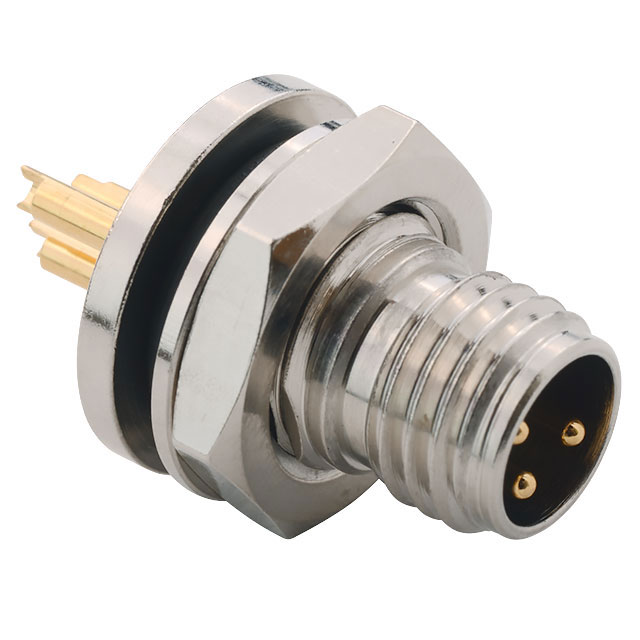

855-003-103R001

Active

MH Connectors

CONN RCPT MALE 3POS SOLDER CUP

Search across all available documentation for this part.

Active

MH Connectors

CONN RCPT MALE 3POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	855-003-103R001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M8-3
Voltage Rating	60 VDC

Part	Ingress Protection	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Primary Material	Shell Size - Insert	Mounting Feature	Contact Material	Color	Insert Material	Shell Material	Connector Type	Current Rating (Amps)	Voltage Rating
MH Connectors 855-003-203R001	IP67 - Dust Tight Waterproof	UL94 V-0	Flash	Gold	85 °C	-40 °C	Nickel	Metal	M8-3	Bulkhead - Front Side Nut	Brass	Silver	Polybutylene Terephthalate (PBT)	Brass	Female Sockets Plug	3 A	60 VDC
MH Connectors 855-003-103R001	IP67 - Dust Tight Waterproof	UL94 V-0	Flash	Gold	85 °C	-40 °C	Nickel	Metal	M8-3	Bulkhead - Front Side Nut	Brass	Silver	Polybutylene Terephthalate (PBT)	Brass	Male Pins Receptacle	3 A	60 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 5.93

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
