887-048-558-812
ActiveEDAC Inc.

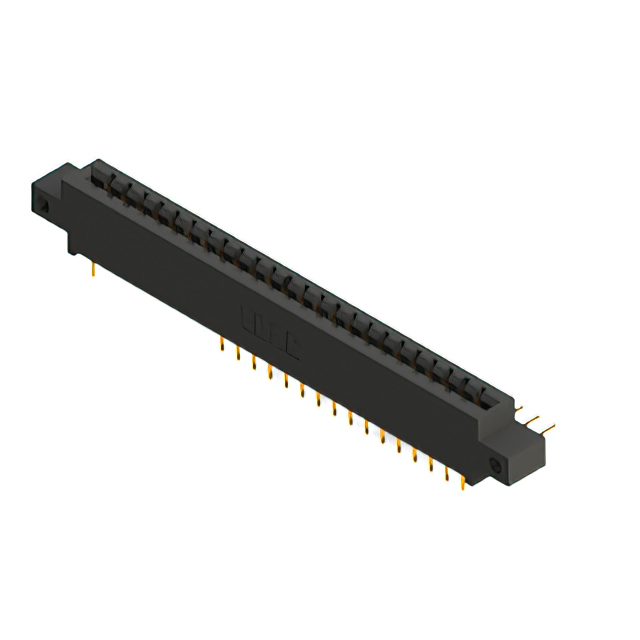

CONN EDGE DUAL FMALE 48POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-048-558-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 48POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-048-558-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 48 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
887-048 Series
...
| Part | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Features | Contact Finish | Card Type | Color | Read Out | Number of Positions | Number of Rows | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Material - Insulation | Termination | Mounting Type | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Copper Alloy | 10 Áin | 0.25 Ám | Card Extender | Gold | Non Specified - Dual Edge | Black | Dual | 48 | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | Solder | Board Edge Straddle Mount | 24 | ||
EDAC Inc. | Side Mount Opening Unthreaded | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Black | Dual | 48 | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | Wire Wrap | Through Hole | 24 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Black | Dual | 48 | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | Solder | Through Hole | 24 | |||||
EDAC Inc. | Side Mount Opening Unthreaded | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Black | Dual | 48 | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | Solder | Through Hole | 24 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Copper Alloy | 10 Áin | 0.25 Ám | Card Extender | Gold | Non Specified - Dual Edge | Black | Dual | 48 | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | Solder | Board Edge Straddle Mount | 24 | ||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Black | Dual | 48 | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | Solder | Through Hole Right Angle | 24 | ||||||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Black | Dual | 48 | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | Wire Wrap | Through Hole | 24 | |||||
EDAC Inc. | Side Mount Opening Unthreaded | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Black | Dual | 48 | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | Solder | Through Hole | 24 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Side Mount Opening Unthreaded | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Black | Dual | 48 | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | Solder | Through Hole Right Angle | 24 | 3.25 mm | 0.128 in | |||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Black | Dual | 48 | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | 125 °C | -40 °C | 0.156 in | 3.96 mm | Polyphenylene Sulfide (PPS) | Solder | Through Hole Right Angle | 24 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
887-048 Series
48 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
