285101-06-06.00
ActiveAmphenol RF

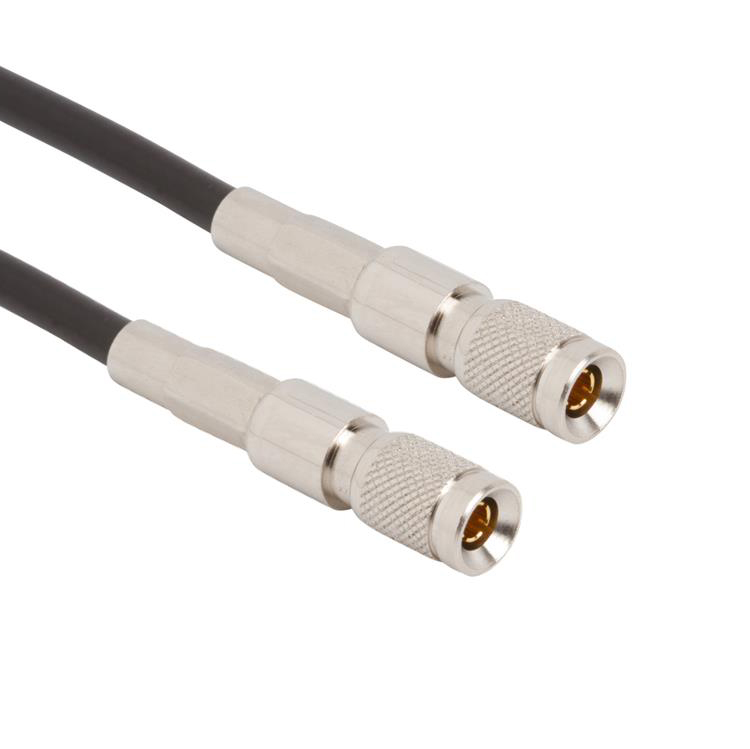

1.0-2.3 STRAIGHT PLUG TO 1.0-2.3 STRAIGHT PLUG B8218 75 OHM 6 INCHES (152 MM)
Deep-Dive with AI
Search across all available documentation for this part.
285101-06-06.00
ActiveAmphenol RF
1.0-2.3 STRAIGHT PLUG TO 1.0-2.3 STRAIGHT PLUG B8218 75 OHM 6 INCHES (152 MM)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 285101-06-06.00 |
|---|---|
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | 1.0/2.3 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Belden 8218 |
| Color | Black |
| Length | 152.4 mm |
| Length | 6 in |
| Overall Impedance | 75 Ohms |
| Style [Max] | |
| Style [Min] | |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
285101 Series
Cable Assembly Coaxial 1.0/2.3 to 1.0/2.3 Belden 8218 6.000" (152.40mm)
Documents
Technical documentation and resources
No documents available
