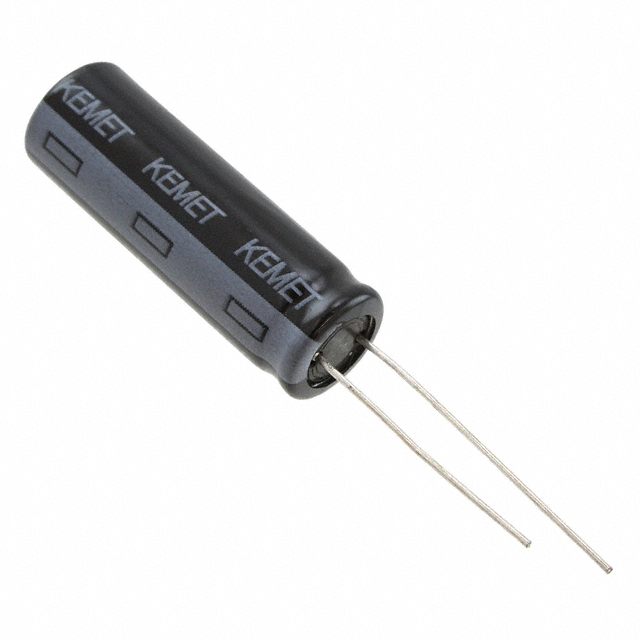

EST687M035AH6AA

Active

KEMET

CAP ALUM 680UF 20% 35V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 680UF 20% 35V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	EST687M035AH6AA

Applications	General Purpose
Capacitance	680 µF
ESR (Equivalent Series Resistance)	44 mOhm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	7000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.91 A
Ripple Current @ Low Frequency	1.146 A
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	35 V

Part	Package / Case	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Applications	Ripple Current @ High Frequency	Polarization	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type	Voltage - Rated
KEMET EST687M035AH6AA	Radial Can	7000 Hrs	5 mm	0.197 in	General Purpose	1.91 A	Polar	1.146 A	44 mOhm	680 µF	10 mm	0.394 in	-40 °C	105 ░C	20 %	Through Hole	35 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

680 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 44mOhm @ 100kHz 7000 Hrs @ 105°C
