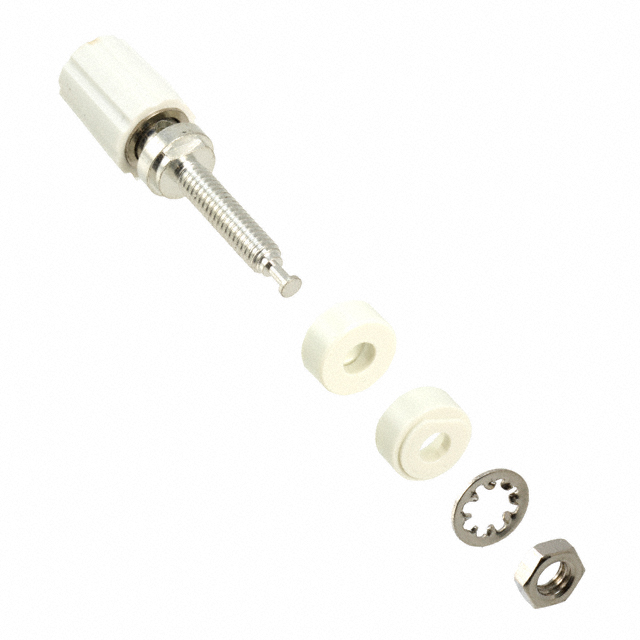

3760-9

Active

Pomona Electronics

CONN BINDING POST F 1 POS ST PANEL MOUNT 1 PORT WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3760-9

Active

Pomona Electronics

CONN BINDING POST F 1 POS ST PANEL MOUNT 1 PORT WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3760-9

Color	White
Cross Hole Diameter [diameter]	0.096 in
Cross Hole Diameter [diameter]	2.43 mm
Current Rating (Amps)	15 A
Head Size	11.18 mm
Head Size [diameter]	0.44 "
Material - Body	Brass
Material - Insulation	Polycarbonate
Material - Insulation	PC
Nut Material	Brass
Nut Plating	Nickel
Plating - Body	Tin
Termination	Turret, Threaded
Termination Thread	8-32
Type	Standard
Voltage Rating	33 VAC, 70 VDC

3760 Series

Part	Termination	Color	Voltage Rating	Type	Nut Material	Head Size [diameter]	Head Size	Material - Body	Plating - Body	Termination Thread	Current Rating (Amps)	Material - Insulation	Material - Insulation	Nut Plating	Cross Hole Diameter [diameter]	Cross Hole Diameter [diameter]
Pomona Electronics 3760-1	Threaded Turret	Brown	33 VAC 70 VDC	Standard	Brass	0.44 "	11.18 mm	Brass	Tin	8-32	15 A	Polycarbonate	PC	Nickel	0.096 in	2.43 mm
Pomona Electronics 3760-4	Threaded Turret	Yellow	33 VAC 70 VDC	Standard	Brass	0.44 "	11.18 mm	Brass	Tin	8-32	15 A	Polycarbonate	PC	Nickel	0.096 in	2.43 mm
Pomona Electronics 3760-3	Threaded Turret		33 VAC 70 VDC	Standard	Brass	0.44 "	11.18 mm	Brass	Tin	8-32	15 A	Polycarbonate	PC	Nickel	0.096 in	2.43 mm
Pomona Electronics 3760-0	Threaded Turret	Black	33 VAC 70 VDC	Standard	Brass	0.44 "	11.18 mm	Brass	Tin	8-32	15 A	Polycarbonate	PC	Nickel	0.096 in	2.43 mm
Pomona Electronics 3760-0#	Threaded Turret	Black	33 VAC 70 VDC	Standard	Brass	0.44 "	11.18 mm	Brass	Tin	8-32	15 A	Polycarbonate	PC	Nickel	0.096 in	2.43 mm
Pomona Electronics 3760-2	Threaded Turret	Red	33 VAC 70 VDC	Standard	Brass	0.44 "	11.18 mm	Brass	Tin	8-32	15 A	Polycarbonate	PC	Nickel	0.096 in	2.43 mm
Pomona Electronics 3760-9	Threaded Turret	White	33 VAC 70 VDC	Standard	Brass	0.44 "	11.18 mm	Brass	Tin	8-32	15 A	Polycarbonate	PC	Nickel	0.096 in	2.43 mm
Pomona Electronics 3760-8	Threaded Turret	Gray	33 VAC 70 VDC	Standard	Brass	0.44 "	11.18 mm	Brass	Tin	8-32	15 A	Polycarbonate	PC	Nickel	0.096 in	2.43 mm
Pomona Electronics 3760-5	Threaded Turret	Green	33 VAC 70 VDC	Standard	Brass	0.44 "	11.18 mm	Brass	Tin	8-32	15 A	Polycarbonate	PC	Nickel	0.096 in	2.43 mm
Pomona Electronics 3760-6	Threaded Turret	Blue	33 VAC 70 VDC	Standard	Brass	0.44 "	11.18 mm	Brass	Tin	8-32	15 A	Polycarbonate	PC	Nickel	0.096 in	2.43 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.49
		25	$ 5.35
LCSC	Piece	1	$ 4.76
		200	$ 1.84
		500	$ 1.78
		1000	$ 1.75

Description

General part information

3760 Series

Binding Post Connector Standard Knurled White Tin
