CBT-140-WDH-L16-RA220

Active

Luminus Devices Inc.

LED MOD CBT-140 WHT RECT 6020K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CBT-White Series (90, 140) Info Note

CBT-140-WDH-L16-RA220

Active

Luminus Devices Inc.

LED MOD CBT-140 WHT RECT 6020K

Deep-Dive with AI

DocumentsDatasheet CBT-White Series (90, 140) Info Note

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CBT-140-WDH-L16-RA220	CBT-140 Series

CCT (K) [Max]	6020 K	6020 - 8500 K
CCT (K) [Min]	5310 K	5310 - 7040 K
Color	Cool, White	Cool, White
Configuration	Rectangle	Square, Rectangle
CRI (Color Rendering Index)	92	92
Current - Max [Max]	28 A	21 - 28 A
Current - Test	21 A	21 A
Features	With Connector	With Connector
Height [z]	5.7 mm	5.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	4.25 mm	4.25 mm
Lumens/Watt @ Current - Test	33 lm/W	31 - 54 lm/W
Luminous Flux @ Current/Temperature	2510 lm	2340 - 4093 lm
Luminous Flux @ Current/Temperature [Max]	2600 lm	2420 - 4230 lm
Luminous Flux @ Current/Temperature [Min]	2420 lm	2260 - 3955 lm
Size / Dimension [x]	28 mm	28 mm
Size / Dimension [y]	42 mm	42 mm
Temperature - Test	85 °C	40 - 85 °C
Type	LED Module	LED Module
Voltage - Forward (Vf) (Typ)	3.6 V	3.6 V

CBT-140 Series

LED MOD CBT-140 CL WHT SQ 8500K

Part	Type	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Lens Type	Configuration	Voltage - Forward (Vf) (Typ)	Features	Current - Test	Lumens/Watt @ Current - Test	Color	Height [z]	Current - Max [Max]	CCT (K) [Min]	CCT (K) [Max]	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	CRI (Color Rendering Index)
Luminus Devices Inc. CBT-140-WCS-C15-TB123	LED Module	85 °C	28 mm	42 mm	Flat	Square	3.6 V	With Connector	21 A	47 lm/W	Cool, White	5.7 mm	21 A	7040 K	8500 K	3560 lm	4.25 mm
Luminus Devices Inc. CBT-140-WCS-L16-TB123	LED Module	85 °C	28 mm	42 mm	Flat	Rectangle	3.6 V	With Connector	21 A	47 lm/W	Cool, White	5.7 mm	28 A	7040 K	8500 K	3560 lm	4.25 mm
Luminus Devices Inc. CBT-140-WDH-L16-RA220	LED Module	85 °C	28 mm	42 mm	Flat	Rectangle	3.6 V	With Connector	21 A	33 lm/W	Cool, White	5.7 mm	28 A	5310 K	6020 K	2510 lm	4.25 mm	2600 lm	2420 lm	92
Luminus Devices Inc. CBT-140-WCS-L16-UB122	LED Module	85 °C	28 mm	42 mm	Flat	Rectangle	3.6 V	With Connector	21 A	54 lm/W	Cool, White	5.7 mm	28 A			4093 lm	4.25 mm	4230 lm	3955 lm
Luminus Devices Inc. CBT-140-WCS-C15-UA120	LED Module	85 °C	28 mm	42 mm	Flat	Square	3.6 V	With Connector	21 A	47 lm/W	Cool, White	5.7 mm	21 A	6020 K	8500 K	3560 lm	4.25 mm
Luminus Devices Inc. CBT-140-WCS-L16-UA120	LED Module	85 °C	28 mm	42 mm	Flat	Rectangle	3.6 V	With Connector	21 A	50 lm/W	Cool, White	5.7 mm	28 A	6020 K	8500 K	3818 lm	4.25 mm
Luminus Devices Inc. CBT-140-WDH-C15-QB220	LED Module	40 °C	28 mm	42 mm	Flat	Rectangle	3.6 V	With Connector	21 A	31 lm/W		5.7 mm	28 A			2340 lm	4.25 mm	2420 lm	2260 lm	92
Luminus Devices Inc. CBT-140-WCS-L16-TB121	LED Module	85 °C	28 mm	42 mm	Flat	Rectangle	3.6 V	With Connector	21 A	47 lm/W	Cool, White	5.7 mm	28 A	6020 K	8500 K	3560 lm	4.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 150.51
		50	$ 120.01

Description

General part information

CBT-140 Series

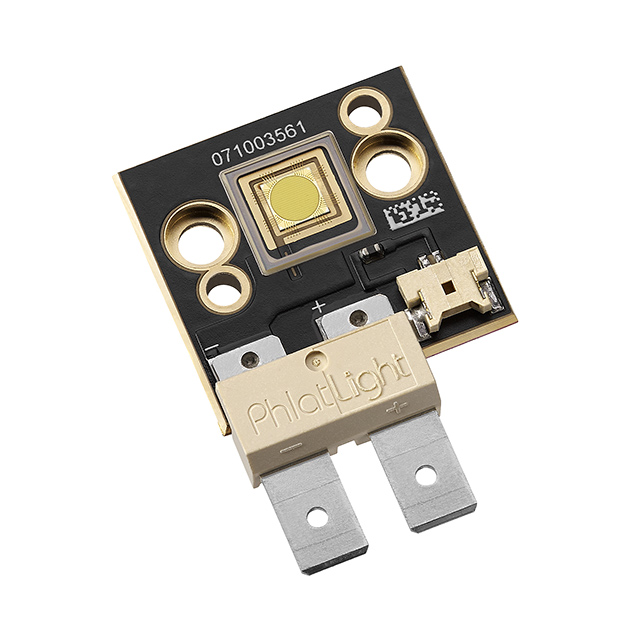

LED Lighting COBs Engines Modules LED Module CBT-140 White, Cool Rectangle
