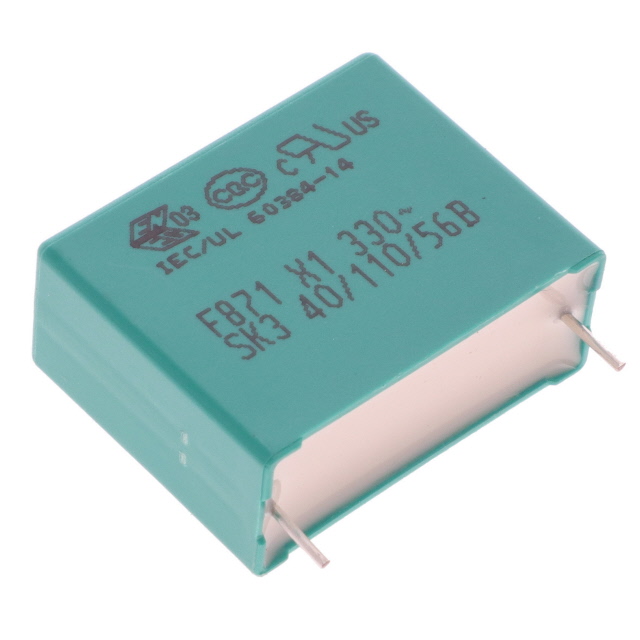

F871FI105M330Z

Active

KEMET

CAP FILM 1UF 20% 330VAC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 1UF 20% 330VAC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	F871FI105M330Z

Applications	EMI, RFI Suppression
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	0.984 "
Height - Seated (Max) [Max] [z]	25 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension [x]	1.24 in
Size / Dimension [x]	31.5 mm
Size / Dimension [y]	13 mm
Size / Dimension [y]	0.512 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	330 V

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Voltage Rating - AC	Dielectric Material	Applications	Tolerance	Capacitance	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Termination
KEMET F871FI105M330Z	0.984 "	25 mm	Through Hole	-40 °C	110 °C	27.5 mm	1.083 in	330 V	Metallized Polypropylene (PP)	EMI RFI Suppression	20 %	1 µF	X1	13 mm	0.512 in	1.24 in	31.5 mm	Radial	PC Pins
