242-1289-00-0602J

Active

JE150174579 242-1289-00-0602J=ZIPDIP-UNIVERSAL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

242-1289-00-0602J

Active

JE150174579 242-1289-00-0602J=ZIPDIP-UNIVERSAL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.64
		10	$ 42.80
		30	$ 41.15
		50	$ 39.78
		100	$ 37.59
		250	$ 36.49
Newark	Each	1	$ 14.52

Description

General part information

242 Series

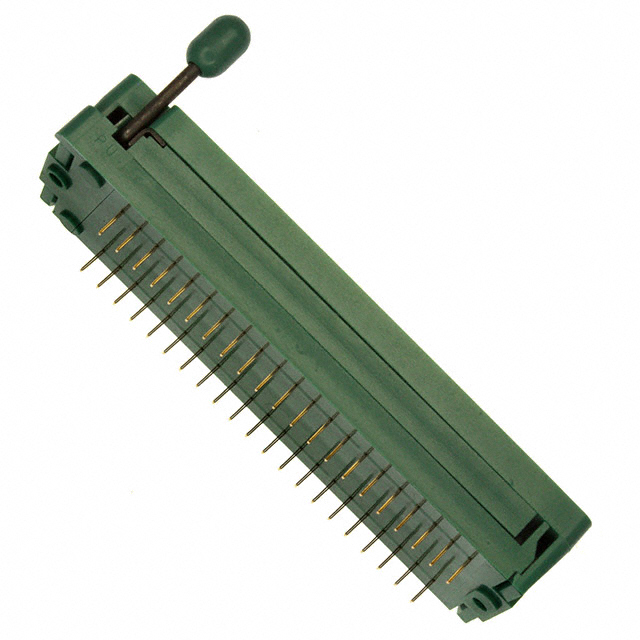

42 (2 x 21) Pos DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing Socket Gold Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	242-1289-00-0602J	242 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	30 µin	30 µin
Contact Finish Thickness - Post	0.76 µm	0.76 µm
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post	Beryllium Copper	Beryllium Copper
Contact Resistance	15 mOhm	15 mOhm
Convert From (Adapter End)	-	15.24 mm
Convert From (Adapter End)	-	DIP
Convert From (Adapter End)	-	0.6 in
Convert To (Adapter End)	-	0.6 in
Convert To (Adapter End)	-	DIP
Convert To (Adapter End)	-	15.24 mm
Current Rating (Amps)	1 A	1 A
Features	Closed Frame	Closed Frame
Housing Material	Polysulfone (PSU), Glass Filled	Polysulfone (PSU), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Connector	Through Hole, Connector
Number of Pins	-	42
Number of Positions or Pins (Grid)	42	42
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.07 - 0.1 in
Pitch - Mating	2.54 mm	1.78 - 2.54 mm
Pitch - Post	2.54 mm	1.78 - 2.54 mm
Pitch - Post	0.1 in	0.07 - 0.1 in
Termination	Press-Fit	Solder, Press-Fit
Termination Post Length	0.11 in	0.11 - 0.13 in
Termination Post Length	2.78 mm	2.78 - 3.3 mm
Type	15.24 mm	15.24 mm
Type	DIP, ZIF (ZIP)	DIP, ZIF (ZIP)
Type	0.6 "	0.6 "

242 Series

RECEPTACLE DIP SOCKET 42POS .6"

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Pitch - Post	Pitch - Post	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post	Termination Post Length	Termination Post Length	Mounting Type	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Number of Pins	Contact Finish - Post	Housing Material	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Material Flammability Rating	Termination	Number of Positions or Pins (Grid)	Contact Resistance	Type	Type	Type
3M 242-1293-29-0602J	0.07 in	1.78 mm	Gold	0.07 in	1.78 mm	Beryllium Copper	-55 °C	125 °C	30 µin	0.76 µm	Beryllium Copper	3.3 mm	0.13 in	Through Hole	15.24 mm	DIP	0.6 in	1 A	30 Áin	0.76 Ám	Closed Frame	42	Gold	Polysulfone (PSU), Glass Filled	0.6 in	DIP	15.24 mm	UL94 V-0	Solder
3M 242-1289-00-0602J	0.1 in	2.54 mm	Gold	0.1 in	2.54 mm	Beryllium Copper	-55 °C	125 °C	30 µin	0.76 µm	Beryllium Copper	2.78 mm	0.11 in	Connector				1 A	30 Áin	0.76 Ám	Closed Frame		Gold	Polysulfone (PSU), Glass Filled				UL94 V-0	Press-Fit	42	15 mOhm	15.24 mm	DIP, ZIF (ZIP)	0.6 "
3M 242-1293-00-0602J	0.07 in	1.78 mm	Gold	0.1 in	2.54 mm	Beryllium Copper	-55 °C	125 °C	30 µin	0.76 µm	Beryllium Copper	2.78 mm	0.11 in	Connector				1 A	30 Áin	0.76 Ám	Closed Frame		Gold	Polysulfone (PSU), Glass Filled				UL94 V-0	Press-Fit	42	15 mOhm	15.24 mm	DIP, ZIF (ZIP)	0.6 "
3M 242-1281-09-0602J	0.1 in	2.54 mm	Gold	0.1 in	2.54 mm	Beryllium Copper	-55 °C	125 °C	30 µin	0.76 µm	Beryllium Copper	3.3 mm	0.13 in	Through Hole	15.24 mm	DIP	0.6 in	1 A	30 Áin	0.76 Ám	Closed Frame	42	Gold	Polysulfone (PSU), Glass Filled	0.6 in	DIP	15.24 mm	UL94 V-0	Solder
