Q-2C03H0005012i

Active

Amphenol Custom Cable

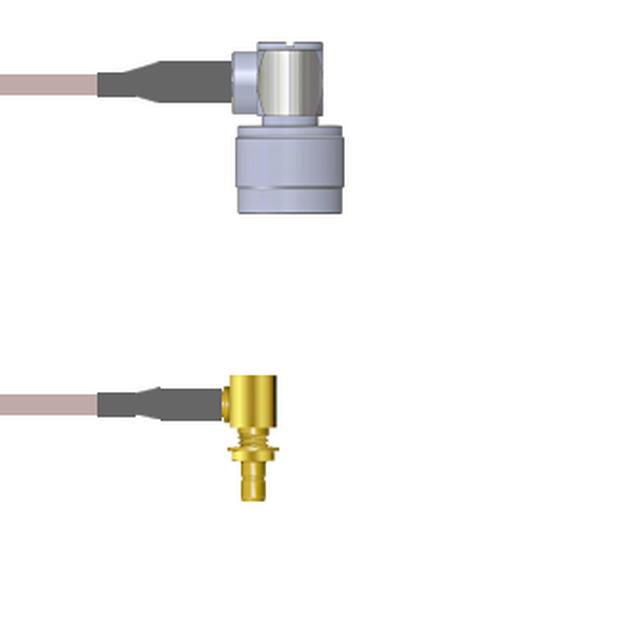

COAX CBL SMB TO N-TYPE 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C03H0005012i

Active

Amphenol Custom Cable

COAX CBL SMB TO N-TYPE 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C03H0005012i

1st Connector	Right Angle, SMB Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2C03H0 Series

Part	Overall Impedance	Length [x]	Length [x]	Style	2nd Connector Mounting Type	1st Connector Mounting Feature	1st Contact Gender	1st Connector Mounting Type	1st Connector	2nd Contact Gender	Color	Cable Type	2nd Connector	Features	Frequency - Max [Max]	Length [x]	Length	Length	Length
Amphenol Custom Cable Q-2C03H0005.25M	50 Ohms	9.843 "	250 mm	SMB to N-Type	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	Panel Mount	Right Angle SMB Jack	Male	Copper	RG-316	N-Type Plug Right Angle	Shielded	4 GHz
Amphenol Custom Cable Q-2C03H0005018i	50 Ohms		457.2 mm	SMB to N-Type	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	Panel Mount	Right Angle SMB Jack	Male	Copper	RG-316	N-Type Plug Right Angle	Shielded	4 GHz	457.2 mm
Amphenol Custom Cable Q-2C03H0005001M	50 Ohms			SMB to N-Type	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	Panel Mount	Right Angle SMB Jack	Male	Copper	RG-316	N-Type Plug Right Angle	Shielded	4 GHz		1 m	3.3 ft	39.4 in
Amphenol Custom Cable Q-2C03H00051.5M	50 Ohms			SMB to N-Type	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	Panel Mount	Right Angle SMB Jack	Male	Copper	RG-316	N-Type Plug Right Angle	Shielded	4 GHz		1.5 m	4.9 ft	59.1 in
Amphenol Custom Cable Q-2C03H0005048i	50 Ohms			SMB to N-Type	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	Panel Mount	Right Angle SMB Jack	Male	Copper	RG-316	N-Type Plug Right Angle	Shielded	4 GHz		1200 mm	4 ft	48 in
Amphenol Custom Cable Q-2C03H0005012i	50 Ohms			SMB to N-Type	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Male	Panel Mount	Right Angle SMB Jack	Male	Copper	RG-316	N-Type Plug Right Angle	Shielded	4 GHz		304.8 mm		12 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 115.63
		25	$ 113.40
		50	$ 111.16
		100	$ 108.93
		250	$ 106.69

Description

General part information

Q-2C03H0 Series

Cable Assembly Coaxial SMB to N-Type RG-316 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
