ATS-61290W-C2-R0

Active

Advanced Thermal Solutions Inc.

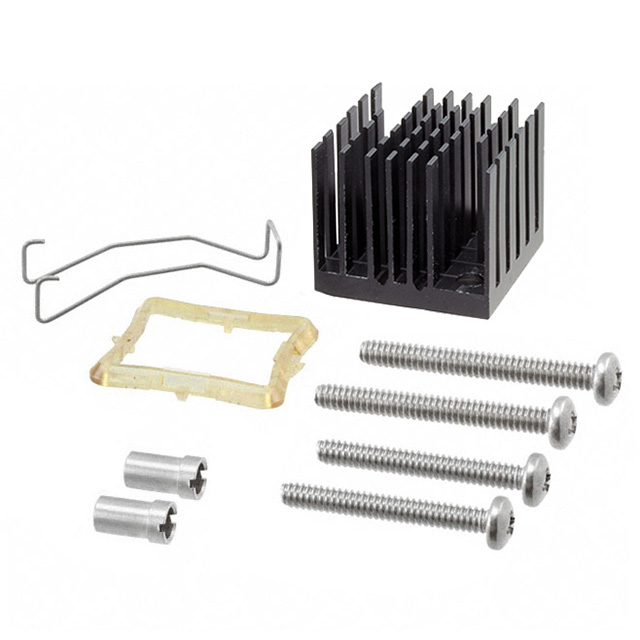

HEAT SINKS BGA FANSINK W/MAXIGRIP ATTACHMENT, T412, FAN SOLD SEPARATELY, 28.25X28.25X24.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ATS-61290W-C2-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS BGA FANSINK W/MAXIGRIP ATTACHMENT, T412, FAN SOLD SEPARATELY, 28.25X28.25X24.5MM

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-61290W-C2-R0

Attachment Method	Clip, Thermal Material
Fin Height [z]	24.5 mm
Fin Height [z]	0.965 in
Length [x]	29 mm
Length [x]	1.142 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	1.8 °C/W
Type	Top Mount
Width [x]	29 mm
Width [x]	1.142 in

fansinktm Series

Heat Sinks BGA fanSINK Assembly w/maxiGRIP Attachment, 26.25x26.25x19.5mm, 26.25mm dia.

Part	Material	Width [x]	Width [x]	Material Finish	Type	Shape	Attachment Method	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Package Cooled	Width [y]	Width [y]	Length	Length	Fin Height	Fin Height	Width	Width	Length [x]	Length [x]
Advanced Thermal Solutions Inc. ATS-61400W-C2-R0	Aluminum	1.575 in	40 mm	Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	1.3 °C/W 200 LFM	24.5 mm	0.965 in	BGA
Advanced Thermal Solutions Inc. ATS-61375R-C1-R0	Aluminum			Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material				BGA	1.476 in	37.5 mm	37.5 mm	1.476 in	0.768 in	19.5 mm
Advanced Thermal Solutions Inc. ATS-61300D-C1-R0	Aluminum			Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	3 °C/W 200 LFM			BGA					0.374 in	9.5 mm	30 mm	1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-61350D-C1-R0	Aluminum	1.378 in		Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	2.6 °C/W 200 LFM			BGA					0.374 in	9.5 mm	35 mm		35 mm	1.378 in
Advanced Thermal Solutions Inc. ATS-61290W-C2-R0	Aluminum	1.142 in	29 mm	Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	1.8 °C/W	24.5 mm	0.965 in	BGA									29 mm	1.142 in
Advanced Thermal Solutions Inc. ATS-61330K-C1-R0	Aluminum	1.299 in	32.99 mm	Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	2 °C/W 200 LFM	14.5 mm	0.571 in	BGA			32.99 mm	1.299 in
Advanced Thermal Solutions Inc. ATS-61330W-C2-R0	Aluminum	1.299 in	32.99 mm	Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material		24.5 mm	0.965 in	BGA			32.99 mm	1.299 in
Advanced Thermal Solutions Inc. ATS-61310K-C1-R0	Aluminum			Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	2.1 °C/W 200 LFM	14.5 mm	0.571 in	BGA			30.99 mm	1.22 in
Advanced Thermal Solutions Inc. ATS-61270K-C1-R0	Aluminum			Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	2.4 °C/W 200 LFM	14.5 mm	0.571 in	BGA	1.063 in	27 mm	27 mm	1.063 in
Advanced Thermal Solutions Inc. ATS-61375W-C2-R0	Aluminum			Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	1.4 °C/W	24.5 mm	0.965 in	BGA	1.476 in	37.5 mm	37.5 mm	1.476 in
