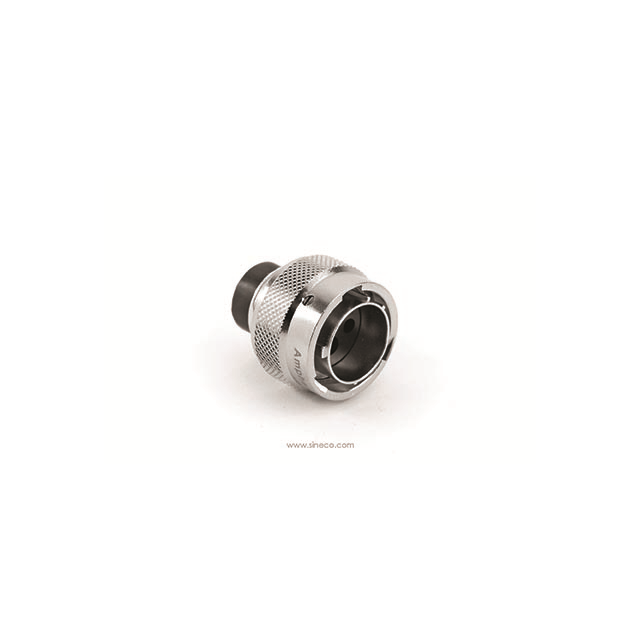

RT06142PNH03
ActiveAmphenol Sine Systems Corp
PLUG, MALE, WITH SILICONE O-RING
Deep-Dive with AI
Search across all available documentation for this part.
RT06142PNH03
ActiveAmphenol Sine Systems Corp
PLUG, MALE, WITH SILICONE O-RING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT06142PNH03 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Silver |
| Includes | 1 Gasket, 1 Connector, 1 O-Ring |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 14-2 |
| Shielding | Shielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 16.91 | |
Description
General part information
RT06142 Series
4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
