NUCLEO-U545RE-Q

Active

STMicroelectronics

STM32U545RET6Q MICROCONTROLLER DEVELOPMENT BOARD 0.032768MHZ CPU 512KB FLASH LINUX 64-BIT/MAC OS/WIN 10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +10

NUCLEO-U545RE-Q

Active

STMicroelectronics

STM32U545RET6Q MICROCONTROLLER DEVELOPMENT BOARD 0.032768MHZ CPU 512KB FLASH LINUX 64-BIT/MAC OS/WIN 10

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +10

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NUCLEO-U545RE-Q

Board Type	Evaluation Platform
Contents	Board(s)
Core Processor	ARM® Cortex®-M33
Interconnect System	ST Morpho, Arduino R3 Shield
Mounting Type	Fixed
Platform	Nucleo-64
Suggested Programming Environment	STM32Cube, Keil MDK, IAR EW
Type	MCU 32-Bit
Utilized IC / Part	STM32U545RE

NUCLEO-U545RE-Q Series

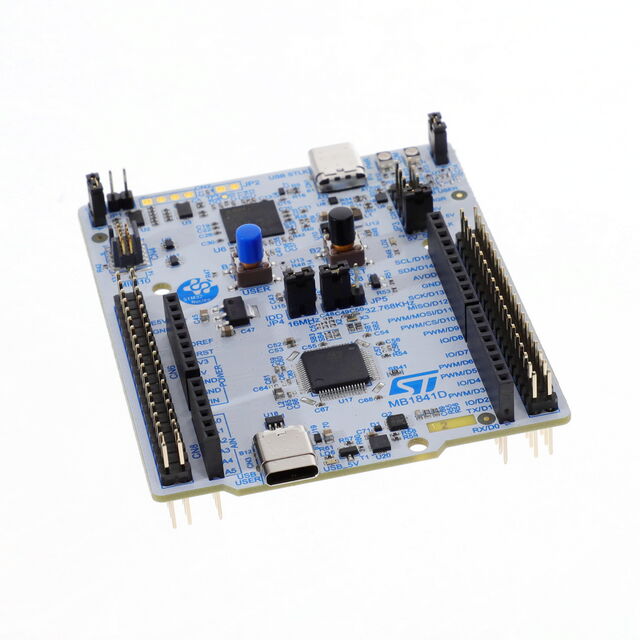

STM32 Nucleo-64 development board with STM32U545RE MCU, SMPS, supports Arduino and morpho connectivity

Part	Supplier Device Package	Data Converters	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Speed	RAM Size	Mounting Type	Program Memory Type	Number of I/O	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Oscillator Type	Program Memory Size	Core Size	Peripherals	Core Processor	Interconnect System	Suggested Programming Environment	Board Type	Platform	Type	Utilized IC / Part	Contents	Supplier Device Package [y]	Supplier Device Package [x]
STMicroelectronics STM32U545CEU6Q	48-UFQFPN (7x7)	A/D 10x12/14b SAR D/A 2x12b	85 °C	-40 °C	48-UFQFN Exposed Pad	160 MHz	274 K	Surface Mount	FLASH	33 I/O	3.6 V	1.71 V	External Internal	512 KB	32-Bit	Brown-out Detect/Reset DMA LCD Motor Control PWM POR PWM WDT	ARM® Cortex®-M33
STMicroelectronics STM32U545VET6Q	100-LQFP (14x14)	A/D 18x12/14b SAR D/A 2x12b	85 °C	-40 °C	100-LQFP	160 MHz	274 K	Surface Mount	FLASH	79	3.6 V	1.71 V	External Internal	512 KB	32-Bit	Brown-out Detect/Reset DMA LCD Motor Control PWM POR PWM WDT	ARM® Cortex®-M33
STMicroelectronics STM32U545VEI6	100-UFBGA (7x7)	A/D 20x12/14b SAR D/A 2x12b	85 °C	-40 °C	100-UFBGA	160 MHz	274 K	Surface Mount	FLASH	82	3.6 V	1.71 V	External Internal	512 KB	32-Bit	Brown-out Detect/Reset DMA LCD Motor Control PWM POR PWM WDT	ARM® Cortex®-M33
STMicroelectronics STM32U545REI6Q	64-UFBGA (5x5)	A/D 15x12/14b SAR D/A 2x12b	85 °C	-40 °C	64-UFBGA	160 MHz	274 K	Surface Mount	FLASH	47	3.6 V	1.71 V	External Internal	512 KB	32-Bit	Brown-out Detect/Reset DMA LCD Motor Control PWM POR PWM WDT	ARM® Cortex®-M33
STMicroelectronics STM32U545RET6	64-LQFP (10x10)	A/D 17x12/14b SAR D/A 2x12b	85 °C	-40 °C	64-LQFP	160 MHz	274 K	Surface Mount	FLASH	51	3.6 V	1.71 V	External Internal	512 KB	32-Bit	Brown-out Detect/Reset DMA LCD Motor Control PWM POR PWM WDT	ARM® Cortex®-M33
STMicroelectronics NUCLEO-U545RE-Q								Fixed									ARM® Cortex®-M33	Arduino R3 Shield ST Morpho	IAR EW Keil MDK STM32Cube	Evaluation Platform	Nucleo-64	MCU 32-Bit	STM32U545RE	Board(s)
STMicroelectronics STM32U545CEU6TR	48-UFQFPN (7x7)	A/D 11x12/14b SAR D/A 2x12b	85 °C	-40 °C	48-UFQFN Exposed Pad	160 MHz	274 K	Surface Mount	FLASH	37	3.6 V	1.71 V	External Internal	512 KB	32-Bit	Brown-out Detect/Reset DMA LCD Motor Control PWM POR PWM WDT	ARM® Cortex®-M33
STMicroelectronics STM32U545CEU6	48-UFQFPN (7x7)	A/D 11x12/14b SAR D/A 2x12b	85 °C	-40 °C	48-UFQFN Exposed Pad	160 MHz	274 K	Surface Mount	FLASH	37	3.6 V	1.71 V	External Internal	512 KB	32-Bit	Brown-out Detect/Reset DMA LCD Motor Control PWM POR PWM WDT	ARM® Cortex®-M33
STMicroelectronics STM32U545CET6	48-LQFP (7x7)	A/D 11x12/14b SAR D/A 2x12b	85 °C	-40 °C	48-LQFP	160 MHz	274 K	Surface Mount	FLASH	37	3.6 V	1.71 V	External Internal	512 KB	32-Bit	Brown-out Detect/Reset DMA LCD Motor Control PWM POR PWM WDT	ARM® Cortex®-M33
STMicroelectronics STM32U545NEY6QTR	56-WLCSP	A/D 11x12/14b SAR D/A 2x12b	85 °C	-40 °C	56-UFBGA WLCSP	160 MHz	274 K	Surface Mount	FLASH	39 I/O	3.6 V	1.71 V	External Internal	512 KB	32-Bit	Brown-out Detect/Reset DMA LCD Motor Control PWM POR PWM WDT	ARM® Cortex®-M33								3.38	3.38

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 24.79
Digikey	Bulk	1	$ 24.60
Newark	Each	1	$ 25.18

Description

General part information

NUCLEO-U545RE-Q Series

The STM32U545xx devices belong to an ultra-low-power microcontrollers family (STM32U5 Series) based on the high-performance Arm®Cortex®-M33 32-bit RISC core. They operate at a frequency of up to 160 MHz.

The Cortex®-M33 core features a single-precision FPU (floating-point unit), that supports all the Arm®single-precision data-processing instructions and all the data types.

The Cortex®-M33 core also implements a full set of DSP (digital signal processing) instructions and a MPU (memory protection unit) that enhances the application security.
