96190.6

Active

Pflitsch

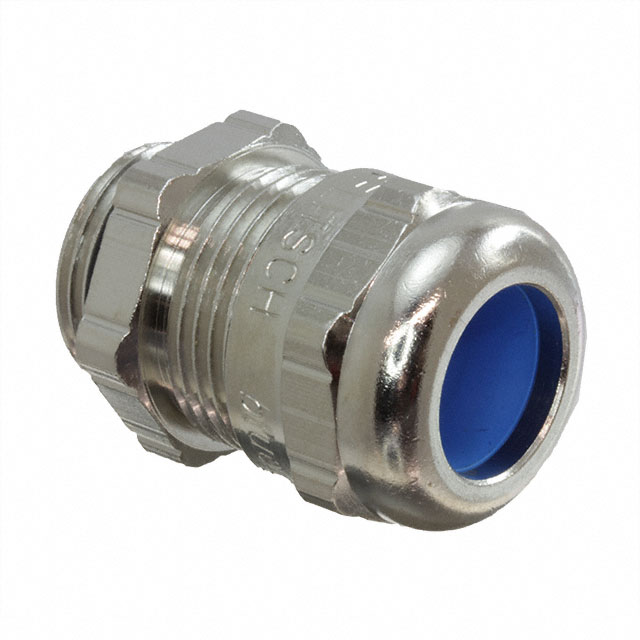

CABLE GLAND 8.89-13.97MM M20

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 8.89-13.97MM M20

Technical Specifications

Parameters and characteristics for this part

Specification	96190.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68, IP69K
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.55 in
Outside Cable Diameter (Max) [Max] [diameter]	13.97 mm
Outside Cable Diameter (Min) [Min] [diameter]	8.89 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.35 "
Panel Hole Size	20.1 mm
Panel Hole Size	0.79 in
Thread Length	0.26 in
Thread Length	6.6 mm
Thread Size	M20x1.5
Type	Cable Gland

Part	Material	Includes	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Panel Hole Size	Panel Hole Size	Type	Thread Length	Thread Length
Pflitsch 96190.6	Brass Nickel Plated	Sealing Ring	M20x1.5	-40 °C	300 °C	Silver	0.55 in	13.97 mm	8.89 mm	0.35 "	IP68 IP69K	20.1 mm	0.79 in	Cable Gland	0.26 in	6.6 mm
Pflitsch 96190.6/15	Brass Nickel Plated	Sealing Ring	M20x1.5	-40 °C	300 °C	Silver	0.55 in	13.97 mm	8.89 mm	0.35 "	IP68 IP69K	20.1 mm	0.79 in	Cable Gland	0.26 in	6.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M20x1.5 Silver

Technical documentation and resources

No documents available
