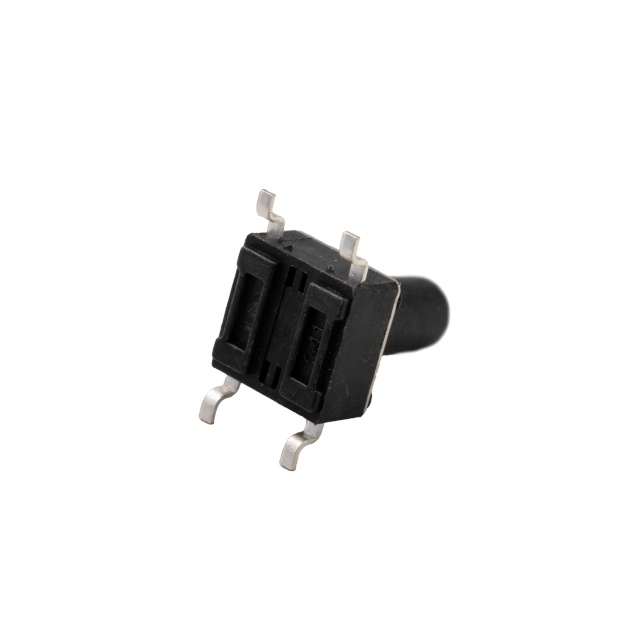

RTS1216DSM-TRNL

Active

RDI, Inc.

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

RDI, Inc.

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	RTS1216DSM-TRNL

Actuator Height off PCB, Vertical	9.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	120 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Contact Rating @ Voltage	Operating Force	Actuator Height off PCB, Vertical	Actuator Orientation	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Switch Function	Outline [y]	Outline [x]	Mounting Type	Mechanical Life	Circuit	Illumination
RDI, Inc. RTS1216DSM-TRNL	Gull Wing	0.05 A, 12 VDC	120 gf	9.5 mm	Top Actuated	Standard	-20 C	70 °C	0.25 mm	Off-Mom	6 mm	6 mm	Surface Mount	100000 Cycles	SPST-NO	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
