BXRC-27E2000-B-73-SE

Active

BRIDGELUX

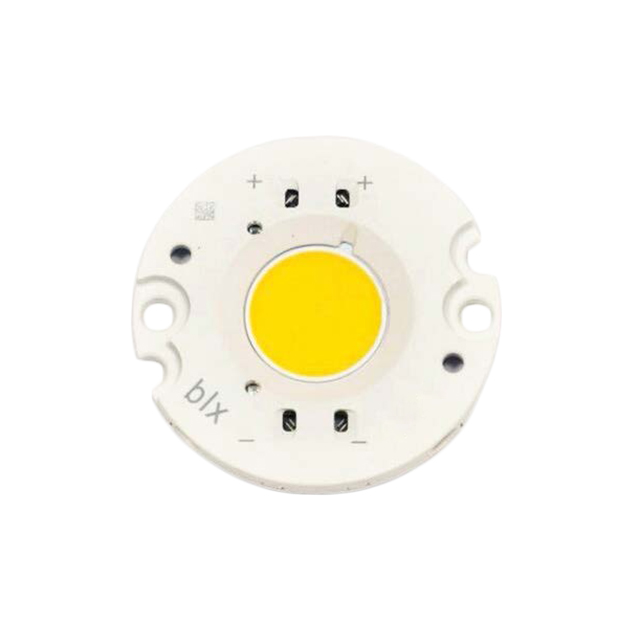

LED COB VERO SE 13 WHT RND 2700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-27E2000-B-73-SE

Active

BRIDGELUX

LED COB VERO SE 13 WHT RND 2700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRC-27E2000-B-73-SE	BXRC-27 Series

CCT (K)	2700 K	2700 K
Color	White, Warm	White, Warm
Configuration	Round	Round, Starboard
CRI (Color Rendering Index)	80	80 - 97
Current - Max [Max]	900 mA	1 - 900 mA
Current - Test	450 mA	1.05 - 900 mA
Features	-	With Connector
Height [z]	3.6 mm	1.8 - 3.6 mm
Lens Type	Flat	Flat, Domed
Light Emitting Surface (LES) [diameter]	13.4 mm	9.9 - 29.2 mm
Lumens/Watt @ Current - Test	133 lm/W	63 - 174 lm/W
Luminous Flux @ Current/Temperature	2049 lm	574 - 18157 lm
Size / Dimension	-	19.9 - 20 mm
Size / Dimension	-	19.9 - 20 mm
Size / Dimension [diameter]	36.2 mm	20 - 49.2 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	34.1 V	25.3 - 69.4 V

BXRC-27 Series

LED COB VERO SE 10 WHT RND 2700K

...

Part	CCT (K)	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Type	CRI (Color Rendering Index)	Size / Dimension [diameter]	Luminous Flux @ Current/Temperature	Configuration	Temperature - Test	Lumens/Watt @ Current - Test	Current - Max [Max]	Height [z]	Current - Test	Viewing Angle	Lens Type	Color	Features
BRIDGELUX BXRC-27G1000-C-72-SE	2700 K	9.9 mm	33.8 V	Chip On Board (COB)	90	30.8 mm	1353 lm	Round	85 °C	111 lm/W	720 mA	3.6 mm	360 mA	120 °	Flat	Warm, White
BRIDGELUX BXRC-27E10K0-B-73-SE	2700 K	29.2 mm	52 V	Chip On Board (COB)	80	49.2 mm	14321 lm	Round		153 lm/W	3.6 A	3.6 mm	1.8 A	120 °	Flat	Warm, White
BRIDGELUX BXRC-27H2000-D-73-SE	2700 K	13.4 mm	30.9 V	Chip On Board (COB)	97	36.2 mm	1641 lm	Round	85 °C	106 lm/W	1 A	3.6 mm	500 mA	120 °	Flat	Warm, White
BRIDGELUX BXRC-27G10K0-C-83-SE	2700 K	29.1 mm	66.7 V	Chip On Board (COB)	90	49.2 mm	12426 lm	Round		143 lm/W	4.75 A	3.6 mm	1.3 A	120 °	Flat	Warm, White
BRIDGELUX BXRC-27E4000-C-83	2700 K	18.5 mm	33.9 V	Chip On Board (COB)	80	36.2 mm	6024 lm	Round		169 lm/W	3 A	1.8 mm	1.05 A	120 °	Flat	Warm, White
BRIDGELUX BXRC-27G1KH0-C-83	2700 K	29.1 mm	66.7 V	Chip On Board (COB)	90	49.2 mm	12995 lm	Round		150 lm/W	4.75 A	1.9 mm	1.3 A	120 °	Flat	Warm, White
BRIDGELUX BXRC-27G2000-D-73-SE	2700 K	13.4 mm	30.9 V	Chip On Board (COB)	90	36.2 mm	1738 lm	Round	85 °C	112 lm/W	1 A	3.6 mm	500 mA	120 °	Flat	Warm, White
BRIDGELUX BXRC-27G2000-C-73-SE	2700 K	13.4 mm	34.1 V	Chip On Board (COB)	90	36.2 mm	2390 lm	Round	85 °C	111 lm/W	1.26 A	3.6 mm	630 mA	120 °	Flat	Warm, White
BRIDGELUX BXRC-27G1000-B-73	2700 K	9.9 mm	34.8 V	Chip On Board (COB)	90	20 mm	1161 lm	Starboard			540 mA	1.9 mm	270 mA	120 °	Flat	Warm, White	With Connector
BRIDGELUX BXRC-27E4000-C-73-SE	2700 K	18.4 mm	34.1 V	Chip On Board (COB)	80	36.2 mm	5364 lm	Round	85 °C		2.34 A	3.6 mm		120 °	Flat	Warm, White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.37
		50	$ 4.21
		100	$ 4.08

Description

General part information

BXRC-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Vero® SE 13 Array White, Warm Round
