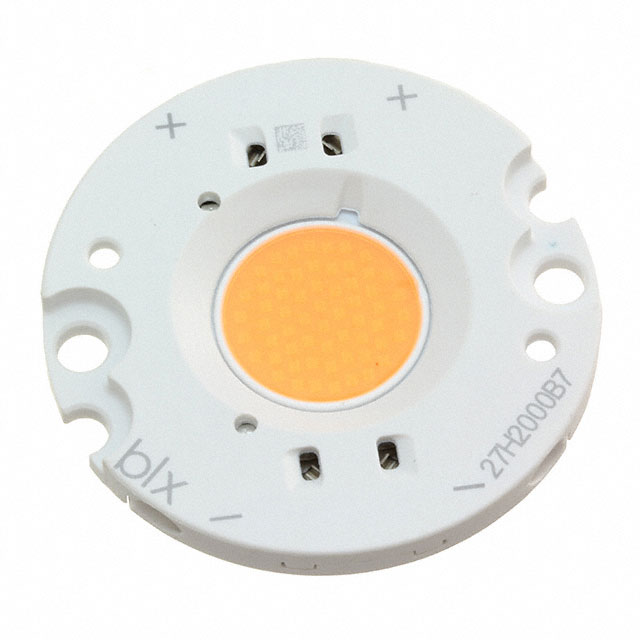

BXRC-27H2000-D-73-SE

Active

BRIDGELUX

LED COB DECOR WM WH ROUND 2700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-27H2000-D-73-SE

Active

BRIDGELUX

LED COB DECOR WM WH ROUND 2700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.79
		50	$ 4.62
		100	$ 4.47

Description

General part information

BXRC-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Décor Series™ Vero® SE 13 White, Warm Round

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRC-27H2000-D-73-SE	BXRC-27 Series

CCT (K)	2700 K	2700 K
Color	White, Warm	White, Warm
Configuration	Round	Round, Starboard
CRI (Color Rendering Index)	97	80 - 97
Current - Max [Max]	1 A	1 - 900 mA
Current - Test	500 mA	1.05 - 900 mA
Features	-	With Connector
Height [z]	3.6 mm	1.8 - 3.6 mm
Lens Type	Flat	Flat, Domed
Light Emitting Surface (LES) [diameter]	13.4 mm	9.9 - 29.2 mm
Lumens/Watt @ Current - Test	106 lm/W	63 - 174 lm/W
Luminous Flux @ Current/Temperature	1641 lm	574 - 18157 lm
Size / Dimension	-	19.9 - 20 mm
Size / Dimension	-	19.9 - 20 mm
Size / Dimension [diameter]	36.2 mm	20 - 49.2 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	30.9 V	25.3 - 69.4 V

BXRC-27 Series

LED COB VERO SE 10 WHT RND 2700K

...

Part	CCT (K)	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Type	CRI (Color Rendering Index)	Size / Dimension [diameter]	Luminous Flux @ Current/Temperature	Configuration	Temperature - Test	Lumens/Watt @ Current - Test	Current - Max [Max]	Height [z]	Current - Test	Viewing Angle	Lens Type	Color	Features
BRIDGELUX BXRC-27G1000-C-72-SE	2700 K	9.9 mm	33.8 V	Chip On Board (COB)	90	30.8 mm	1353 lm	Round	85 °C	111 lm/W	720 mA	3.6 mm	360 mA	120 °	Flat	Warm, White
BRIDGELUX BXRC-27E10K0-B-73-SE	2700 K	29.2 mm	52 V	Chip On Board (COB)	80	49.2 mm	14321 lm	Round		153 lm/W	3.6 A	3.6 mm	1.8 A	120 °	Flat	Warm, White
BRIDGELUX BXRC-27H2000-D-73-SE	2700 K	13.4 mm	30.9 V	Chip On Board (COB)	97	36.2 mm	1641 lm	Round	85 °C	106 lm/W	1 A	3.6 mm	500 mA	120 °	Flat	Warm, White
BRIDGELUX BXRC-27G10K0-C-83-SE	2700 K	29.1 mm	66.7 V	Chip On Board (COB)	90	49.2 mm	12426 lm	Round		143 lm/W	4.75 A	3.6 mm	1.3 A	120 °	Flat	Warm, White
BRIDGELUX BXRC-27E4000-C-83	2700 K	18.5 mm	33.9 V	Chip On Board (COB)	80	36.2 mm	6024 lm	Round		169 lm/W	3 A	1.8 mm	1.05 A	120 °	Flat	Warm, White
BRIDGELUX BXRC-27G1KH0-C-83	2700 K	29.1 mm	66.7 V	Chip On Board (COB)	90	49.2 mm	12995 lm	Round		150 lm/W	4.75 A	1.9 mm	1.3 A	120 °	Flat	Warm, White
BRIDGELUX BXRC-27G2000-D-73-SE	2700 K	13.4 mm	30.9 V	Chip On Board (COB)	90	36.2 mm	1738 lm	Round	85 °C	112 lm/W	1 A	3.6 mm	500 mA	120 °	Flat	Warm, White
BRIDGELUX BXRC-27G2000-C-73-SE	2700 K	13.4 mm	34.1 V	Chip On Board (COB)	90	36.2 mm	2390 lm	Round	85 °C	111 lm/W	1.26 A	3.6 mm	630 mA	120 °	Flat	Warm, White
BRIDGELUX BXRC-27G1000-B-73	2700 K	9.9 mm	34.8 V	Chip On Board (COB)	90	20 mm	1161 lm	Starboard			540 mA	1.9 mm	270 mA	120 °	Flat	Warm, White	With Connector
BRIDGELUX BXRC-27E4000-C-73-SE	2700 K	18.4 mm	34.1 V	Chip On Board (COB)	80	36.2 mm	5364 lm	Round	85 °C		2.34 A	3.6 mm		120 °	Flat	Warm, White
