L135-4080CA35000P1

Active

Lumileds

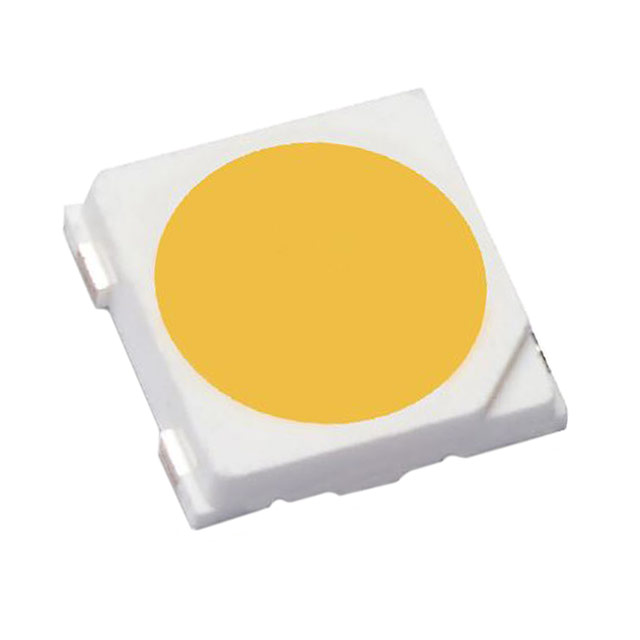

LED UNI-COLOR WHITE 53LM 4000K CHIP LED 2-PIN SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L135-4080CA35000P1

Active

Lumileds

LED UNI-COLOR WHITE 53LM 4000K CHIP LED 2-PIN SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.58
		10	$ 0.36
		100	$ 0.21
		1000	$ 0.16
		2000	$ 0.15
	Digi-Reel®	1	$ 0.58
		10	$ 0.36
		100	$ 0.21
		1000	$ 0.16
		2000	$ 0.15
	Tape & Reel (TR)	5000	$ 0.13
		10000	$ 0.12
		25000	$ 0.12
		50000	$ 0.12

Description

General part information

L135 Series

Supports ENERGY STAR lumen maintenance certification requirements

Maximum drive current of 200mA delivers superior lumens for reduced LED count

1/7th ANSI color binning delivers tight color control

Documents

Technical documentation and resources

Datasheet

Specification	L135-4080CA35000P1	L135 Series

CCT (K)	4000 K	2700 - 6500 K
Color	Neutral, White	Lime, Red, Green, Cool, White, Warm, Neutral, Blue, Amber
CRI (Color Rendering Index)	80	70 - 90
Current - Max [Max]	300 mA	30 - 300 mA
Current - Test	100 mA	15 - 100 mA
Flux @ 25°C, Current - Test	53 lm	45 - 93 lm
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 - 0.9 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 - 0.035 "
Lumens/Watt @ Current - Test	189 lm/W	72 - 197 lm/W
Luminous Flux @ Current/Temperature	-	23 - 143 lm
Luminous Flux @ Current/Temperature	-	130 mW
Luminous Flux @ Current/Temperature	-	155 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414, 2-SMD, No Lead
Size / Dimension	-	3.5 mm
Size / Dimension [x]	3.5 mm	3.4 - 3.5 mm
Size / Dimension [x]	0.138 "	0.134 - 0.138 "
Size / Dimension [y]	3.4 mm	3.4 mm
Size / Dimension [y]	0.134 in	0.134 - 0.138 in
Supplier Device Package	3535	3535, 1414
Thermal Resistance of Package	-	42 °C/W
Thermal Resistance of Package [custom]	14 °C/W	11.5 - 25 °C/W
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	2.8 V	2 - 48 V
Wavelength	-	448 - 625 nm
Wavelength	-	455 - 540 nm
Wavelength	-	440 - 520 nm

Part

Luminous Flux @ Current/Temperature

Mounting Type

Supplier Device Package

Package / Case

Thermal Resistance of Package [custom]

Viewing Angle

Current - Test

Current - Max [Max]

Height - Seated (Max) [Max] [z]

Lumens/Watt @ Current - Test

Voltage - Forward (Vf) (Typ)

Color

Size / Dimension [y]

Size / Dimension [x]

Wavelength

Size / Dimension [y]

Wavelength [Max]

Wavelength [Min]

Thermal Resistance of Package [diameter]

CRI (Color Rendering Index)

CCT (K)

Flux @ 25°C, Current - Test

Luminous Flux @ Current/Temperature [Min]

Luminous Flux @ Current/Temperature [Max]

Lumileds

L135-L567003500000

56 lm

Surface Mount

3535

3535 Metric

1414

11.5 °C/W

115 °

100 mA

200 mA

0.035 "

0.9 mm

184 lm/W

3.05 V

Lime

3.4 mm

0.134 in

3.5 mm

0.138 "

Lumileds

L135-R6250R3500000

Surface Mount

2-SMD, No Lead

115 °

100 mA

125 mA

0.035 "

0.9 mm

75 lm/W

2 V

Red

0.138 in

3.4 mm

0.134 "

625 nm

3.5 mm

Lumileds

L135-G525003500001

23 lm

Surface Mount

3535

3535 Metric

1414

115 °

100 mA

125 mA

0.035 "

0.9 mm

72 lm/W

3.2 V

Green

3.4 mm

0.134 in

3.5 mm

0.138 "

530 nm

540 nm

520 nm

42 °C/W

Lumileds

L135-6590CA35000P1

Surface Mount

1414

3535 Metric

1414

14 °C/W

115 °

100 mA

300 mA

0.035 "

0.9 mm

2.8 V

Cool, White

3.4 mm

0.134 in

3.5 mm

0.138 "

6500 K

Lumileds

L135-3070SA35000P1

Surface Mount

1414

3535 Metric

1414

14 °C/W

115 °

100 mA

300 mA

0.035 "

0.9 mm

190 lm/W

2.8 V

Warm, White

3.4 mm

0.134 in

3.5 mm

0.138 "

53 lm

Lumileds

L135-50800BHV00001

Surface Mount

3535

3535 Metric

1414

25 °C/W

15 mA

30 mA

0.035 "

0.9 mm

133 lm/W

24 V

Cool, White

3.4 mm

0.134 in

3.5 mm

0.138 "

5000 K

Lumileds

L135-3570CA35000P1

Surface Mount

1414

3535 Metric

1414

14 °C/W

115 °

100 mA

300 mA

0.035 "

0.9 mm

2.8 V

Warm, White

3.4 mm

0.134 in

3.5 mm

0.138 "

3500 K

Lumileds

L135-6590SA35000P1

Surface Mount

1414

3535 Metric

1414

14 °C/W

115 °

100 mA

300 mA

0.035 "

0.9 mm

161 lm/W

2.8 V

Cool, White

3.4 mm

0.134 in

3.5 mm

0.138 "

6500 K

45 lm

Lumileds

L135-2770SA35000P1

Surface Mount

1414

3535 Metric

1414

14 °C/W

115 °

100 mA

300 mA

0.035 "

0.9 mm

183 lm/W

2.8 V

Warm, White

3.4 mm

0.134 in

3.5 mm

0.138 "

2700 K

52 lm

Lumileds

L135-5090SA35000P1

Surface Mount

1414

3535 Metric

1414

14 °C/W

115 °

100 mA

300 mA

0.035 "

0.9 mm

2.8 V

Cool, White

3.4 mm

0.134 in

3.5 mm

0.138 "

5000 K

46 lm

Part	Luminous Flux @ Current/Temperature	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Thermal Resistance of Package [custom]	Viewing Angle	Current - Test	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Wavelength	Size / Dimension [y]	Wavelength [Max]	Wavelength [Min]	Thermal Resistance of Package [diameter]	CRI (Color Rendering Index)	CCT (K)	Flux @ 25°C, Current - Test
Lumileds L135-L567003500000	56 lm	Surface Mount	3535	3535 Metric	1414	11.5 °C/W	115 °	100 mA	200 mA	0.035 "	0.9 mm	184 lm/W	3.05 V	Lime	3.4 mm	0.134 in	3.5 mm	0.138 "
Lumileds L135-R6250R3500000		Surface Mount			2-SMD, No Lead		115 °	100 mA	125 mA	0.035 "	0.9 mm	75 lm/W	2 V	Red		0.138 in	3.4 mm	0.134 "	625 nm	3.5 mm
Lumileds L135-G525003500001	23 lm	Surface Mount	3535	3535 Metric	1414		115 °	100 mA	125 mA	0.035 "	0.9 mm	72 lm/W	3.2 V	Green	3.4 mm	0.134 in	3.5 mm	0.138 "	530 nm		540 nm	520 nm	42 °C/W
Lumileds L135-6590CA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm		2.8 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						90	6500 K
Lumileds L135-3070SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm	190 lm/W	2.8 V	Warm, White	3.4 mm	0.134 in	3.5 mm	0.138 "						70		53 lm
Lumileds L135-50800BHV00001		Surface Mount	3535	3535 Metric	1414	25 °C/W		15 mA	30 mA	0.035 "	0.9 mm	133 lm/W	24 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						80	5000 K
Lumileds L135-3570CA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm		2.8 V	Warm, White	3.4 mm	0.134 in	3.5 mm	0.138 "						70	3500 K
Lumileds L135-6590SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm	161 lm/W	2.8 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						90	6500 K	45 lm
Lumileds L135-2770SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm	183 lm/W	2.8 V	Warm, White	3.4 mm	0.134 in	3.5 mm	0.138 "						70	2700 K	52 lm
Lumileds L135-5090SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm		2.8 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						90	5000 K	46 lm
