L135-G525003500001

Unknown

Lumileds

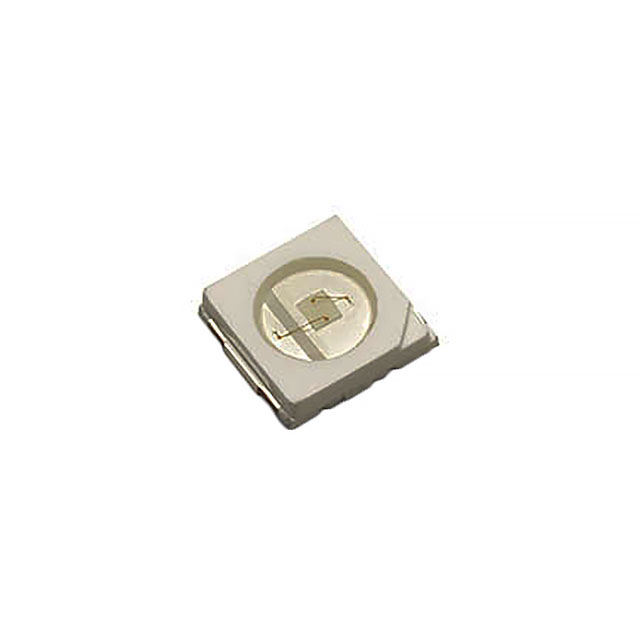

LED LUXEON 3535L GRN 530NM 3535

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L135-G525003500001

Unknown

Lumileds

LED LUXEON 3535L GRN 530NM 3535

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

L135 Series

LED Lighting Color LUXEON 3535L Green 530nm (520nm ~ 540nm) 1414 (3535 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L135-G525003500001	L135 Series

CCT (K)	-	2700 - 6500 K
Color	Green	Lime, Red, Green, Cool, White, Warm, Neutral, Blue, Amber
CRI (Color Rendering Index)	-	70 - 90
Current - Max [Max]	125 mA	30 - 300 mA
Current - Test	100 mA	15 - 100 mA
Flux @ 25°C, Current - Test	-	45 - 93 lm
Height - Seated (Max) [Max] [z]	0.035 "	0.031 - 0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm	0.8 - 0.9 mm
Lumens/Watt @ Current - Test	72 lm/W	72 - 197 lm/W
Luminous Flux @ Current/Temperature	23 lm	23 - 143 lm
Luminous Flux @ Current/Temperature	-	130 mW
Luminous Flux @ Current/Temperature	-	155 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414, 2-SMD, No Lead
Size / Dimension	-	3.5 mm
Size / Dimension [x]	3.5 mm	3.4 - 3.5 mm
Size / Dimension [x]	0.138 "	0.134 - 0.138 "
Size / Dimension [y]	3.4 mm	3.4 mm
Size / Dimension [y]	0.134 in	0.134 - 0.138 in
Supplier Device Package	3535	3535, 1414
Thermal Resistance of Package	-	11.5 - 25 °C/W
Thermal Resistance of Package [diameter]	42 °C/W	42 °C/W
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	3.2 V	2 - 48 V
Wavelength	530 nm	448 - 625 nm
Wavelength [Max]	540 nm	455 - 540 nm
Wavelength [Min]	520 nm	440 - 520 nm

L135 Series

LED UNI-COLOR LIME 56LM CHIP LED 2-PIN SMD T/R

Part	Luminous Flux @ Current/Temperature	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Thermal Resistance of Package [custom]	Viewing Angle	Current - Test	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Wavelength	Size / Dimension [y]	Wavelength [Max]	Wavelength [Min]	Thermal Resistance of Package [diameter]	CRI (Color Rendering Index)	CCT (K)	Flux @ 25°C, Current - Test
Lumileds L135-L567003500000	56 lm	Surface Mount	3535	3535 Metric	1414	11.5 °C/W	115 °	100 mA	200 mA	0.035 "	0.9 mm	184 lm/W	3.05 V	Lime	3.4 mm	0.134 in	3.5 mm	0.138 "
Lumileds L135-R6250R3500000		Surface Mount			2-SMD, No Lead		115 °	100 mA	125 mA	0.035 "	0.9 mm	75 lm/W	2 V	Red		0.138 in	3.4 mm	0.134 "	625 nm	3.5 mm
Lumileds L135-G525003500001	23 lm	Surface Mount	3535	3535 Metric	1414		115 °	100 mA	125 mA	0.035 "	0.9 mm	72 lm/W	3.2 V	Green	3.4 mm	0.134 in	3.5 mm	0.138 "	530 nm		540 nm	520 nm	42 °C/W
Lumileds L135-6590CA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm		2.8 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						90	6500 K
Lumileds L135-3070SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm	190 lm/W	2.8 V	Warm, White	3.4 mm	0.134 in	3.5 mm	0.138 "						70		53 lm
Lumileds L135-50800BHV00001		Surface Mount	3535	3535 Metric	1414	25 °C/W		15 mA	30 mA	0.035 "	0.9 mm	133 lm/W	24 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						80	5000 K
Lumileds L135-3570CA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm		2.8 V	Warm, White	3.4 mm	0.134 in	3.5 mm	0.138 "						70	3500 K
Lumileds L135-6590SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm	161 lm/W	2.8 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						90	6500 K	45 lm
Lumileds L135-2770SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm	183 lm/W	2.8 V	Warm, White	3.4 mm	0.134 in	3.5 mm	0.138 "						70	2700 K	52 lm
Lumileds L135-5090SA35000P1		Surface Mount	1414	3535 Metric	1414	14 °C/W	115 °	100 mA	300 mA	0.035 "	0.9 mm		2.8 V	Cool, White	3.4 mm	0.134 in	3.5 mm	0.138 "						90	5000 K	46 lm
