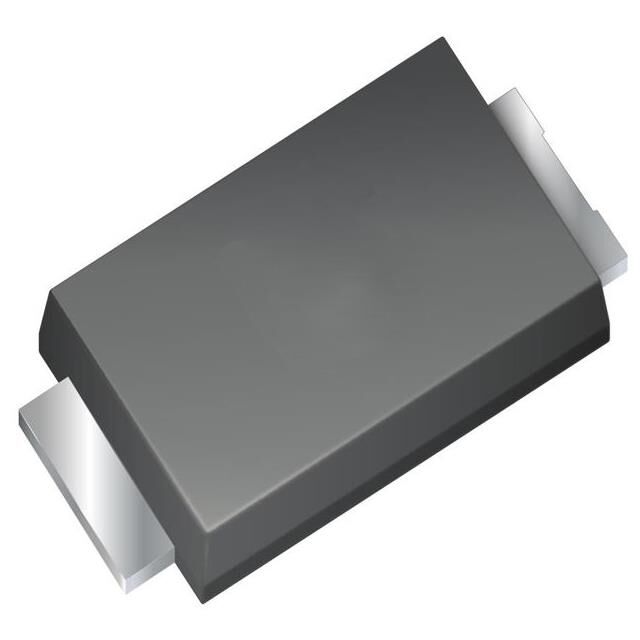

SMA6F12AH

Active

Taiwan Semiconductor Corporation

600W, 14.1V, 5%, UNIDIRECTIONAL, TVS

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

600W, 14.1V, 5%, UNIDIRECTIONAL, TVS

Technical Specifications

Parameters and characteristics for this part

Specification	SMA6F12AH

Current - Peak Pulse (10/1000µs)	30.8 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	SMA Flat Leads, DO-221AC
Power - Peak Pulse	600 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	Thin SMA
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	13.4 V
Voltage - Clamping (Max) @ Ipp [Max]	19.5 V
Voltage - Reverse Standoff (Typ)	12 V

Part	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Qualification	Unidirectional Channels [custom]	Power Line Protection	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Mounting Type	Type	Grade	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Power - Peak Pulse
Taiwan Semiconductor Corporation SMA6F12AH	19.5 V	30.8 A	AEC-Q101	1		12 V	13.4 V	Thin SMA	Surface Mount	Zener	Automotive	DO-221AC SMA Flat Leads	-55 °C	175 ░C	600 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	28000	$ 0.10

General part information

19.5V Clamp 30.8A Ipp Tvs Diode Surface Mount Thin SMA
