2000T 500-750

Active

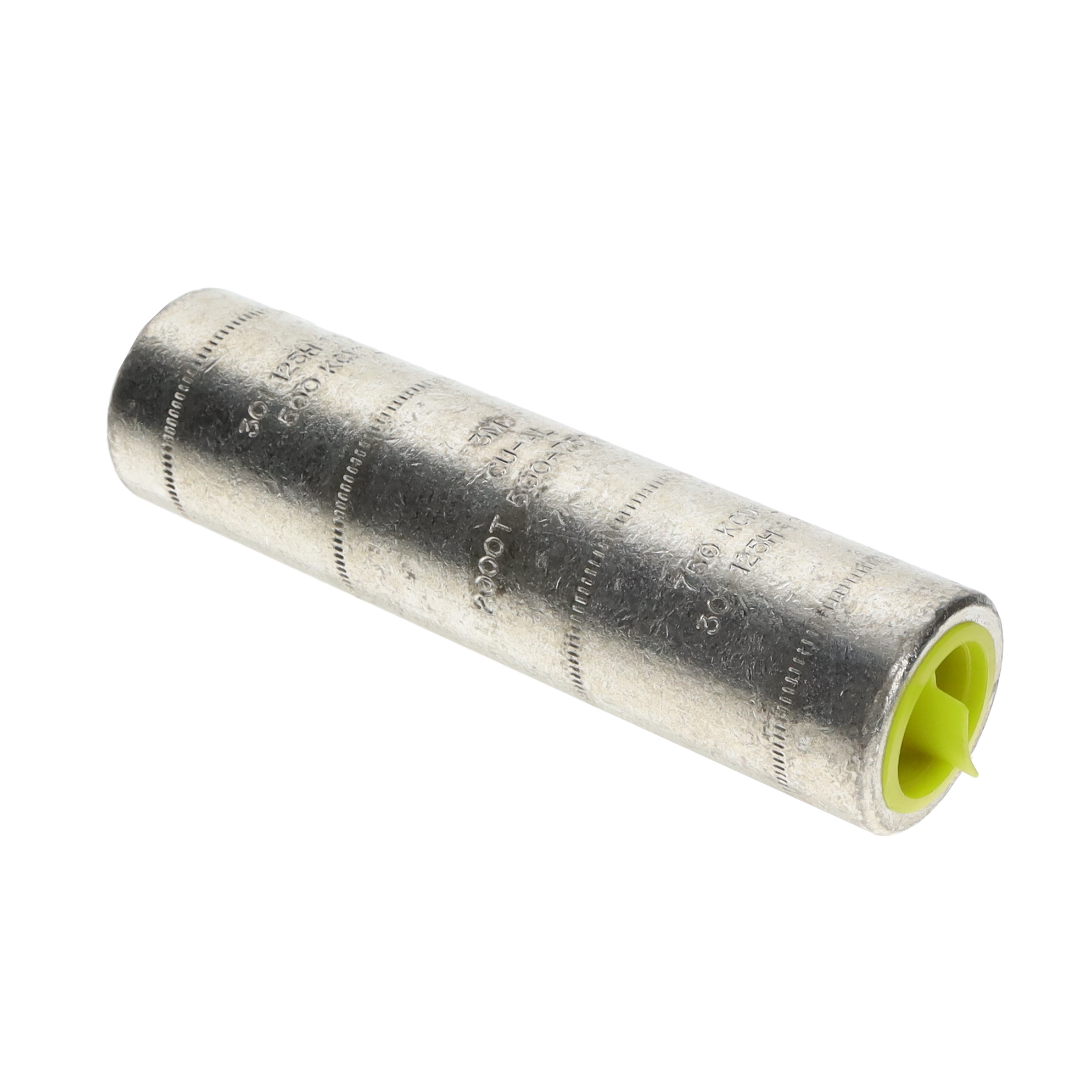

SCOTCHLOK REDUCER CONNECTOR

Search across all available documentation for this part.

Active

SCOTCHLOK REDUCER CONNECTOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 500MCM (kcmil) to 750MCM (kcmil)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2000T 500-750	2000T Series

Features	Step Up/Step Down	Step Up/Step Down
Insulation	Non-Insulated	Non-Insulated
Number of Wire Entries	2	2
Terminal Type	Butt Splice, Inline, Individual Openings	Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Wire Gauge	-	2 - 750 aught AWG
Wire Gauge	-	750 MCM
Wire Gauge [Max]	750 kcmil	46 - 1000 MCM (kcmil)
Wire Gauge [Min]	500 kcmil	2 - 750 MCM (kcmil)

SCOTCHLOK COPPER CONN 4/0AWG

Part	Insulation	Termination	Number of Wire Entries	Terminal Type	Wire Gauge	Features	Wire Gauge	Wire Gauge [Min]	Wire Gauge [Max]
3M 2000T-4/0-CU	Non-Insulated	Crimp	2	Butt Splice, Individual Openings, Inline	4 aught AWG	Step Up/Step Down
3M 2000T-750-CU	Non-Insulated	Crimp	2	Butt Splice, Individual Openings, Inline	750 kcmil	Step Up/Step Down	750 MCM
3M 2000T 250-350	Non-Insulated	Crimp	2	Butt Splice, Individual Openings, Inline		Step Up/Step Down		250 MCM (kcmil)	350 MCM (kcmil)
3M 2000T 750-1000	Non-Insulated	Crimp	2	Butt Splice, Individual Openings, Inline		Step Up/Step Down		750 kcmil	1000 kcmil
3M 2000T 1/0-2/0	Non-Insulated	Crimp	2	Butt Splice, Individual Openings, Inline		Step Up/Step Down		2 aught AWG	46 AWG
3M 2000T 500-1000	Non-Insulated	Crimp	2	Butt Splice, Individual Openings, Inline		Step Up/Step Down		500 kcmil	1000 kcmil
3M 2000T 350-500	Non-Insulated	Crimp	2	Butt Splice, Individual Openings, Inline		Step Up/Step Down
3M 2000T 500-750	Non-Insulated	Crimp	2	Butt Splice, Individual Openings, Inline		Step Up/Step Down		500 kcmil	750 kcmil
3M 2000T-2-CU	Non-Insulated	Crimp	2	Butt Splice, Individual Openings, Inline	2 AWG	Step Up/Step Down
