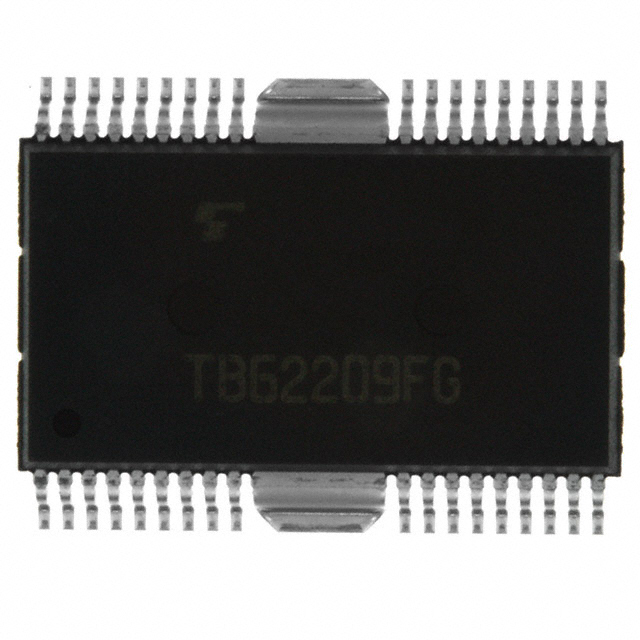

TB62209FG,EL

Obsolete

Toshiba Semiconductor and Storage

IC MTR DRV BIPLR 4.5-5.5V 36HSOP

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

IC MTR DRV BIPLR 4.5-5.5V 36HSOP

Technical Specifications

Parameters and characteristics for this part

Specification	TB62209FG,EL

Applications	General Purpose
Current - Output	1.5 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (4)
Package / Case	2 Heat Tabs, 36-BSSOP
Package / Case [x]	0.346 in
Package / Case [y]	8.8 mm
Step Resolution	1/16, 1, 1/4, 1/2, 1/8
Supplier Device Package	36-HSOP
Technology	DMOS
Voltage - Load [Max]	34 V
Voltage - Load [Min]	13 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Technology	Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Motor Type - Stepper	Interface	Package / Case [x]	Package / Case	Package / Case [y]	Supplier Device Package	Output Configuration	Current - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Step Resolution	Applications
Toshiba Semiconductor and Storage TB62209FG,EL	DMOS	Driver - Fully Integrated Control and Power Stage	150 °C	-40 °C	13 V	34 V	Bipolar	Parallel	0.346 in	2 Heat Tabs 36-BSSOP	8.8 mm	36-HSOP	Half Bridge (4)	1.5 A	4.5 V	5.5 V	Surface Mount	1 1/16 1/2 1/4 1/8	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar Motor Driver DMOS Parallel 36-HSOP

Technical documentation and resources

No documents available
