PT10LH01-201A2020-S

Active

Amphenol Piher Sensing Systems

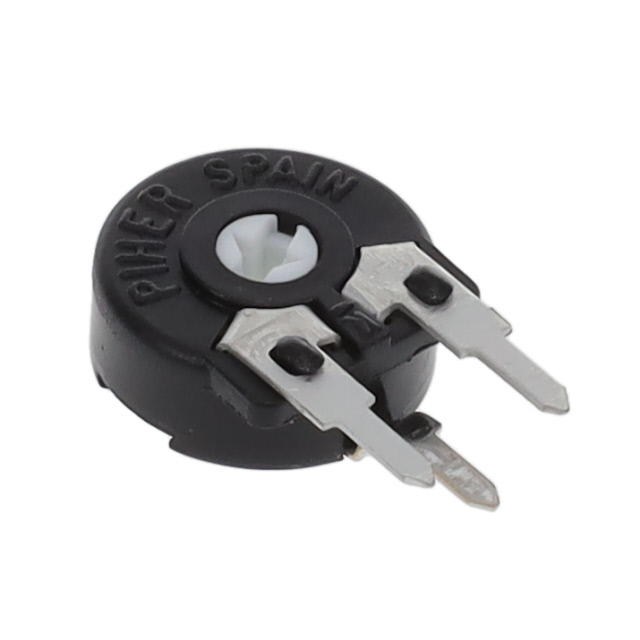

TRIMMER 200OHM 0.15W PC PIN SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PT10LH01-201A2020-S

Active

Amphenol Piher Sensing Systems

TRIMMER 200OHM 0.15W PC PIN SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PT10LH01-201A2020-S	PT10LH01 Series

Adjustment Type	Side Adjustment	Side Adjustment
Mounting Type	Through Hole	Through Hole
Number of Turns	1	1
Power (Watts)	150 mW	150 mW
Resistance	200 Ohms	1 - 10000 kOhms
Resistive Material	Carbon	Carbon
Size / Dimension	Round	Round
Size / Dimension [diameter]	0.406 in	0.406 in
Size / Dimension [diameter]	10.3 mm	10.3 mm
Temperature Coefficient	300 ppm/°C	300 ppm/°C
Termination Style	PC Pins	PC Pins
Tolerance	20 %	20 - 30 %

PT10LH01 Series

TRIMMER 47KOHM 0.15W PC PIN SIDE

Part	Tolerance	Power (Watts)	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension	Resistance	Resistive Material	Adjustment Type	Number of Turns	Termination Style	Temperature Coefficient
Amphenol Piher Sensing Systems PT10LH01-473A2020-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	47 kOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-504A2020-PM-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round		Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-202A2020-PM-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	2 kOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-255A3030-S	30 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	2.5 MOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-101A2020-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	100 Ohms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-503A2020-PM-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	50 kOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-201A2020-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	200 Ohms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-505A3030-S	30 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	5 MOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-501A2020-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	500 Ohms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-104A2020-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	100 kOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.59
		10	$ 0.47
		25	$ 0.44
		50	$ 0.41
		100	$ 0.38
		250	$ 0.35
		500	$ 0.33
		1000	$ 0.31
		5000	$ 0.26

Description

General part information

PT10LH01 Series

200 Ohms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
