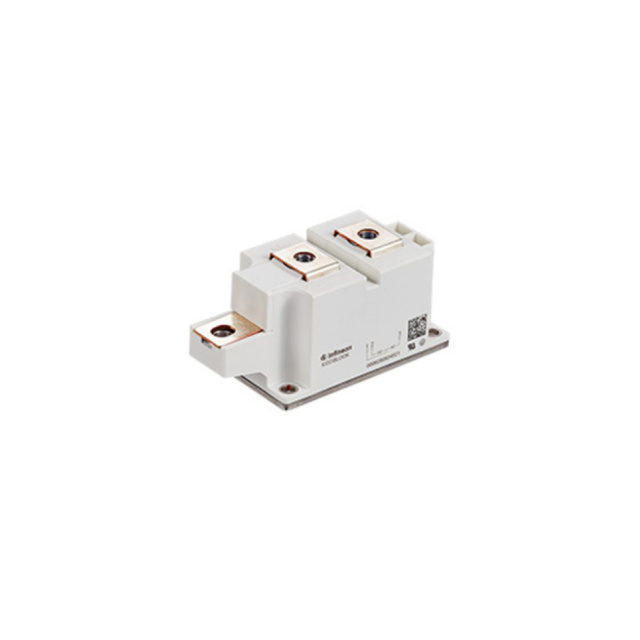

DD390N16SHPSA1

Active

Infineon Technologies

DIODE MODULE, 1.6 KV, 390 A, 1.34 V, DUAL SERIES, MODULE, 7 PINS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DD390N16SHPSA1

Active

Infineon Technologies

DIODE MODULE, 1.6 KV, 390 A, 1.34 V, DUAL SERIES, MODULE, 7 PINS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DD390N16SHPSA1

Current - Average Rectified (Io) (per Diode)	390 A
Current - Reverse Leakage @ Vr	1 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	BG-PB50SB-1
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.34 V

DD390N16 Series

Part	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Speed	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Package / Case	Current - Reverse Leakage @ Vr	Supplier Device Package
Infineon Technologies DD390N16SHPSA1	1 Pair Series Connection	390 A	125 °C	-40 °C	Standard	Standard Recovery >500ns	200 mA	Chassis Mount	1.34 V	Module	1 mA	BG-PB50SB-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 99.38
		12	$ 90.72
		27	$ 86.55
		81	$ 82.07
Newark	Each	1	$ 103.32
		6	$ 100.33
		12	$ 97.33
		27	$ 94.34
		51	$ 88.00

Description

General part information

DD390N16 Series

Rectifier Diode 50 mmPrime Block1600 V, 390 A module for phase control insolder bond technology. This is the second generation with increase current rating. If you need additional features or higher performance go topressure contact technologyand if you need higher blocking voltage go toD390N22S.
