M80-8780722
ActiveHarwin Inc.

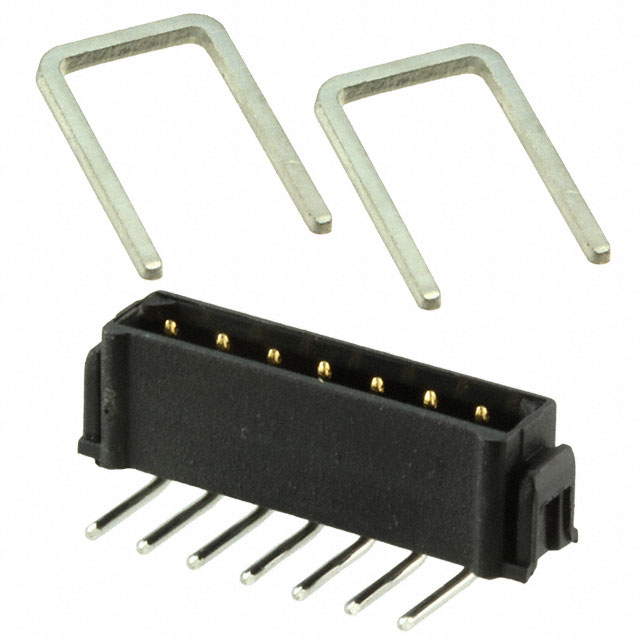

HEADER CONNECTOR,PCB MNT,RECEPT,7 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO
Deep-Dive with AI
Search across all available documentation for this part.
M80-8780722
ActiveHarwin Inc.
HEADER CONNECTOR,PCB MNT,RECEPT,7 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8780722 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Fastening Type | Latch Holder |
| Features | Strain Relief Clips |
| Insulation Color | Black |
| Insulation Height | 0.156 in |
| Insulation Height | 3.96 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 120 VDC |
M80-878 Series
| Part | Current Rating (Amps) | Number of Positions Loaded | Style | Contact Length - Post | Contact Length - Post | Insulation Material | Fastening Type | Connector Type | Insulation Color | Contact Finish - Post | Contact Type | Voltage Rating | Contact Finish - Mating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Mounting Type | Contact Shape | Shrouding | Termination | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Pitch - Mating [x] | Pitch - Mating [x] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 2.2 A | All | Board to Board Cable | 0.118 in | 3 mm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Holder | Header | Black | Tin-Lead | Male Pin | 120 VDC | Gold | UL94 V-0 | -55 °C | 125 °C | 0.156 in | 3.96 mm | Through Hole Right Angle | Circular | Shrouded - 4 Wall | Solder | Phosphor Bronze | 29.5 Áin | 0.75 Ám | 4 | 3 µm | 118.1 µin | Strain Relief Clips | 0.079 in | 2 mm | 1 |
Harwin Inc. | 2.2 A | All | Board to Board Cable | 0.118 in | 3 mm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Holder | Header | Black | Tin-Lead | Male Pin | 120 VDC | Gold | UL94 V-0 | -55 °C | 125 °C | 0.156 in | 3.96 mm | Through Hole Right Angle | Circular | Shrouded - 4 Wall | Solder | Phosphor Bronze | 29.5 Áin | 0.75 Ám | 2 | 3 µm | 118.1 µin | Strain Relief Clips | 0.079 in | 2 mm | 1 |
Harwin Inc. | 2.2 A | All | Board to Board Cable | 0.118 in | 3 mm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Holder | Header | Black | Tin-Lead | Male Pin | 120 VDC | Gold | UL94 V-0 | -55 °C | 125 °C | 0.156 in | 3.96 mm | Through Hole Right Angle | Circular | Shrouded - 4 Wall | Solder | Phosphor Bronze | 29.5 Áin | 0.75 Ám | 22 positions | 3 µm | 118.1 µin | Strain Relief Clips | 0.079 in | 2 mm | 1 |
Harwin Inc. | 2.2 A | All | Board to Board Cable | 0.118 in | 3 mm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Holder | Header | Black | Tin-Lead | Male Pin | 120 VDC | Gold | UL94 V-0 | -55 °C | 125 °C | 0.156 in | 3.96 mm | Through Hole Right Angle | Circular | Shrouded - 4 Wall | Solder | Phosphor Bronze | 29.5 Áin | 0.75 Ám | 3 µm | 118.1 µin | Strain Relief Clips | 0.079 in | 2 mm | 1 | |
Harwin Inc. | 2.2 A | All | Board to Board Cable | 0.118 in | 3 mm | Polybutylene Terephthalate (PBT) Glass Filled | Latch Holder | Header | Black | Tin-Lead | Male Pin | 120 VDC | Gold | UL94 V-0 | -55 °C | 125 °C | 0.156 in | 3.96 mm | Through Hole Right Angle | Circular | Shrouded - 4 Wall | Solder | Phosphor Bronze | 29.5 Áin | 0.75 Ám | 7 | 3 µm | 118.1 µin | Strain Relief Clips | 0.079 in | 2 mm | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-878 Series
Connector Header Through Hole, Right Angle 7 position 0.079" (2.00mm)
