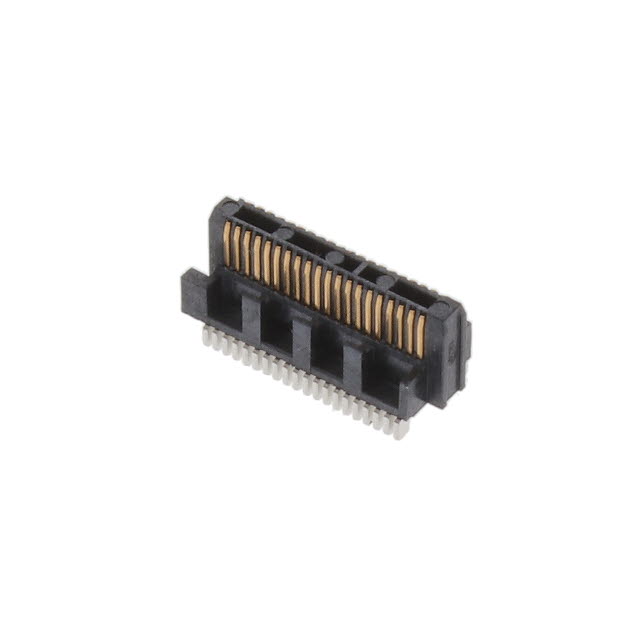

ST4-20-2.50-L-D-P-TR

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.40 MM MICRO BLADE & BEAM ULTRA FINE PITCH HEADER

Search across all available documentation for this part.

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.40 MM MICRO BLADE & BEAM ULTRA FINE PITCH HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	ST4-20-2.50-L-D-P-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place
Height Above Board	4.57 mm
Height Above Board	0.18 in
Mated Stacking Heights	5.5 mm, 6 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Board to Board & Mezzanine Connectors 0.40 mm Micro Blade & Beam Ultra Fine Pitch Header

Part	Mounting Type	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Height Above Board	Height Above Board	Number of Positions	Contact Finish
Samtec Inc. ST4-20-2.50-L-D-P-TR	Surface Mount	Header Center Strip Contacts	Pick and Place	10 Áin	0.25 Ám	2	0.016 in	0.4 mm	5.5 mm 6 mm	4.57 mm	0.18 in	40	Gold
Samtec Inc. ST4-40-1.50-L-D-P-TR	Surface Mount	Header Center Strip Contacts	Pick and Place	10 Áin	0.25 Ám	2	0.016 in	0.4 mm	4.5 mm 5 mm	3.58 mm	0.141 in	80	Gold
