896-005-559-602

Active

EDAC Inc.

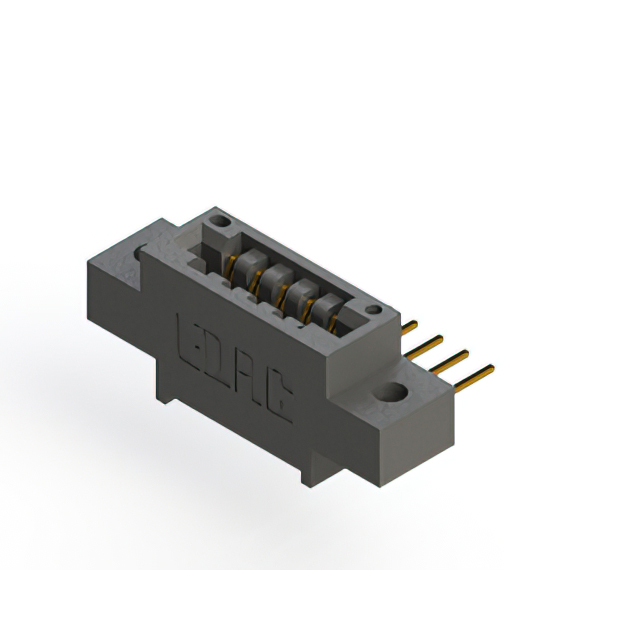

CARD EDGE CONNECTOR, 5 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.125 INCH PITCH, SOLDER TERMINAL, HOLE .128, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-005-559-602

Active

EDAC Inc.

CARD EDGE CONNECTOR, 5 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.125 INCH PITCH, SOLDER TERMINAL, HOLE .128, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	896-005-559-602

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions/Bay/Row [custom]	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

896-005 Series

Part	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Read Out	Termination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Contact Material	Color	Contact Finish	Contact Type	Termination Rows	Number of Rows	Gender	Flange Feature	Flange Feature
EDAC Inc. 896-005-500-103	0.125 in	3.18 mm	0.116 in	Floating Bobbin Flush Mount	2.95 mm	10 Áin	0.25 Ám	5	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Single	Solder Eyelet(s)	Through Hole	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	Black	Gold	Cantilever	1	1	Female
EDAC Inc. 896-005-521-602	0.125 in	3.18 mm				10 Áin	0.25 Ám	5	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Single	Solder	Through Hole	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	Black	Gold	Cantilever	1	1	Female	3.25 mm	0.128 in
EDAC Inc. 896-005-521-108	0.125 in	3.18 mm		4-40 Flush Mount Threaded Insert Top Opening		10 Áin	0.25 Ám	5	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Single	Solder	Through Hole	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	Black	Gold	Cantilever	1	1	Female
EDAC Inc. 896-005-559-602	0.125 in	3.18 mm				10 Áin	0.25 Ám	5	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Single	Solder	Through Hole Right Angle	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	Black	Gold	Cantilever	1	1	Female	3.25 mm	0.128 in
EDAC Inc. 896-005-540-108	0.125 in	3.18 mm		4-40 Flush Mount Threaded Insert Top Opening		10 Áin	0.25 Ám	5	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Single	Wire Wrap	Through Hole	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	Black	Gold	Cantilever	1	1	Female
EDAC Inc. 896-005-558-602	0.125 in	3.18 mm				10 Áin	0.25 Ám	5	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Single	Solder	Through Hole Right Angle	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	Black	Gold	Cantilever	1	1	Female	3.25 mm	0.128 in
EDAC Inc. 896-005-500-102	0.125 in	3.18 mm	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	10 Áin	0.25 Ám	5	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Single	Solder Eyelet(s)	Through Hole	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	Black	Gold	Cantilever	1	1	Female
EDAC Inc. 896-005-520-604	0.125 in	3.18 mm	0.156 in	Top Mount Opening Unthreaded	3.96 mm	10 Áin	0.25 Ám	5	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Single	Solder	Through Hole	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	Black	Gold	Cantilever	1	1	Female
EDAC Inc. 896-005-526-107	0.125 in	3.18 mm		Flush Mount M3 Threaded Insert Top Opening		10 Áin	0.25 Ám	5	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Single	Solder	Through Hole	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	Black	Gold	Cantilever	1	1	Female
EDAC Inc. 896-005-540-102	0.125 in	3.18 mm	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	10 Áin	0.25 Ám	5	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Single	Wire Wrap	Through Hole	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	Black	Gold	Cantilever	1	1	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 48.86
Newark	Each	1	$ 58.64
		100	$ 44.59
		250	$ 38.59
		500	$ 32.59
		1000	$ 24.50

Description

General part information

896-005 Series

5 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
