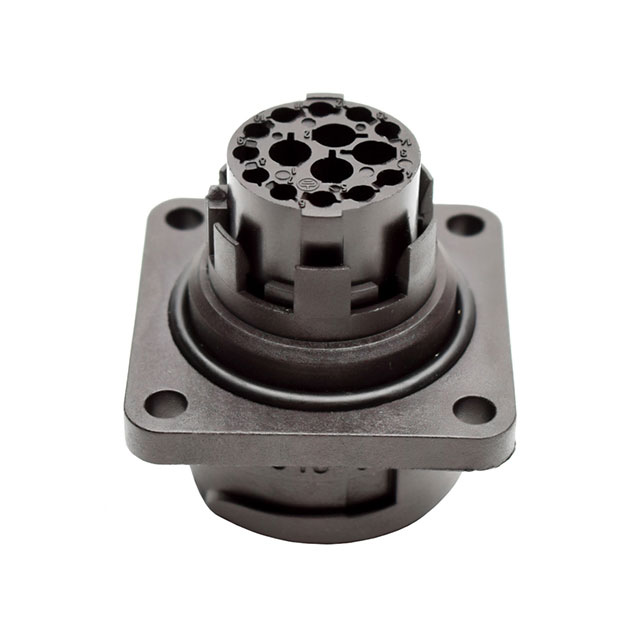

C01610C0140001

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 15POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 15POS PNL MT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C01610C0140001	C01610C014 Series

Connector Type	Receptacle Housing	Receptacle Housing
Contact Shape	Circular	Circular
Contact Size	1.5 mm, 2.5 mm	1.5 - 2.5 mm
Contact Type	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Housing Color	Black	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Note	Contacts Not Included	Contacts Not Included
Number of Positions	15	15
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1	1 - 2
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

CONN RCPT HSNG MALE 15POS PNL MT

Part	Fastening Type	Ingress Protection	Mounting Feature	Shielding	Number of Positions	Contact Shape	Housing Color	Type	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Orientation	Contact Size	Shell Material	Connector Type	Note	Contact Type
Amphenol Tuchel Industrial C01610C0140002	Bayonet Lock	IP65 - Dust Tight, Water Resistant	Flange	Unshielded	15	Circular	Black	For Male Pins	2	125 °C	-40 °C	UL94 V-0	N	1.5 mm, 1.6 mm	Polyamide (PA66), Nylon 6/6	Receptacle Housing	Contacts Not Included	Crimp
Amphenol Tuchel Industrial C01610C0140001	Bayonet Lock	IP65 - Dust Tight, Water Resistant	Flange	Unshielded	15	Circular	Black	For Male Pins	1	125 °C	-40 °C	UL94 V-0	N	1.5 mm, 2.5 mm	Polyamide (PA66), Nylon 6/6	Receptacle Housing	Contacts Not Included	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 (14 + PE) Position Circular Connector Receptacle Housing Panel Mount
