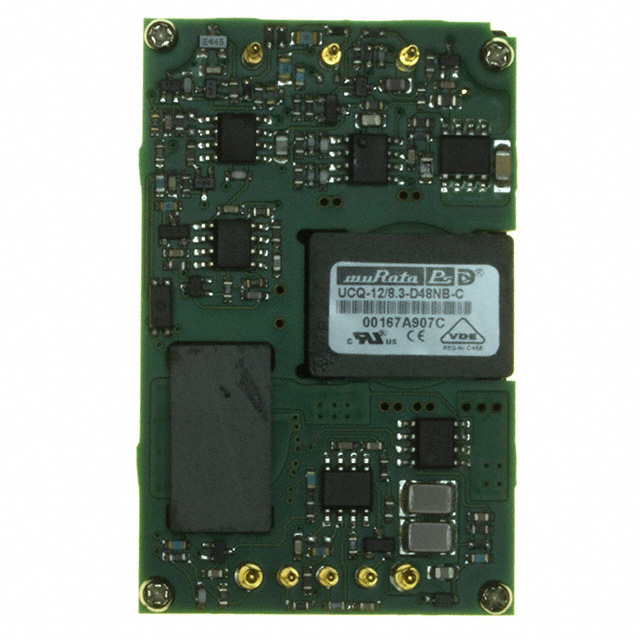

UCQ-12/8.3-D48N-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 99W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCQ-12/8.3-D48N-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 99W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCQ-12/8.3-D48N-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 8.3 A |
| Efficiency | 91 % |
| Features | Remote On/Off, OVP, SCP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1/4 Brick, 8-DIP Module |
| Power (Watts) | 99 W |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
UCQ-12 Series
DC DC CONVERTER 12V 99W
| Part | Control Features | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Isolation | Power (Watts) | Current - Output (Max) [Max] | Number of Outputs | Package / Case | Features | Type | Voltage - Input (Min) [Min] | Applications | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UCQ-12/8.3-D48N-C | Active Low, Enable | 12 V | 1.45 in | 0.4 " | 58.4 mm | 36.8 mm | 10 mm | 2.3 in | 2250 VDC | 99 W | 8.3 A | 1 | 1/4 Brick, 8-DIP Module | OTP, OVP, Remote On/Off, SCP | Isolated Module | 36 V | ITE (Commercial) | Through Hole | 85 °C | -40 °C | 91 % | 75 V |
Description
General part information
UCQ-12 Series
Isolated Module DC DC Converter 1 Output 12V 8.3A 36V - 75V Input
