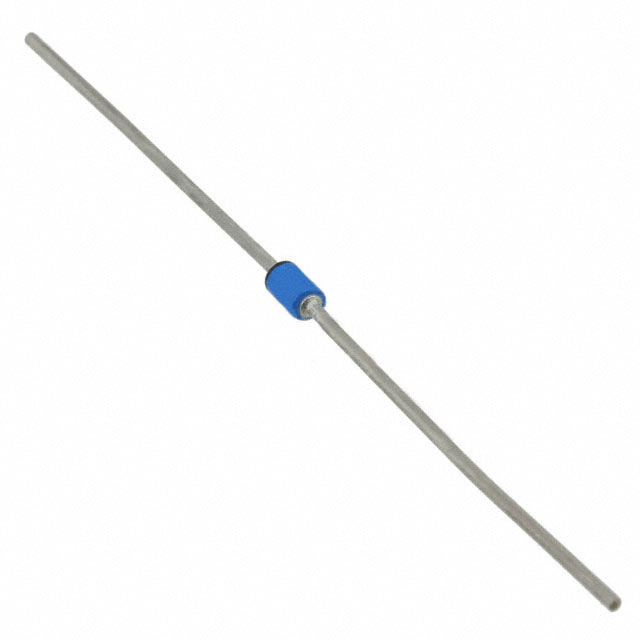

JAN1N4245

Active

Microchip Technology

DIODE GEN PURP 200V 1A AXIAL

Search across all available documentation for this part.

Active

Microchip Technology

DIODE GEN PURP 200V 1A AXIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	JAN1N4245	1N4245 Series

	-	-
Current - Average Rectified (Io)	1 A	1 A
Current - Reverse Leakage @ Vr	1 µA	1 µA
Grade	Military	Military
Mounting Type	Through Hole	Through Hole
Operating Temperature - Junction [Max]	175 ░C	175 ░C
Operating Temperature - Junction [Min]	-65 C	-65 C
Package / Case	A, Axial	A, Axial
Qualification	MIL-PRF-19500/286	MIL-PRF-19500/286
Reverse Recovery Time (trr)	5 µs	5 µs
Speed	Standard Recovery >500ns	Standard Recovery >500ns
Speed	200 mA	200 mA
Supplier Device Package	A, Axial	A, Axial
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V	200 V
Voltage - Forward (Vf) (Max) @ If	1.3 V	1.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DIODE GEN PURP 200V 1A AXIAL

Part	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Technology	Supplier Device Package	Package / Case	Speed	Speed	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Qualification	Grade
Microchip Technology JAN1N4245	Through Hole	1.3 V	1 A	175 ░C	-65 C	1 µA	Standard	A, Axial	A, Axial	Standard Recovery >500ns	200 mA	5 µs	200 V	MIL-PRF-19500/286	Military
Microchip Technology 1N4245	Through Hole	1.3 V	1 A	175 ░C	-65 C	1 µA	Standard	A, Axial	A, Axial	Standard Recovery >500ns	200 mA	5 µs	200 V
Microchip Technology 1N4245

General part information

Diode 200 V 1A Through Hole A, Axial
