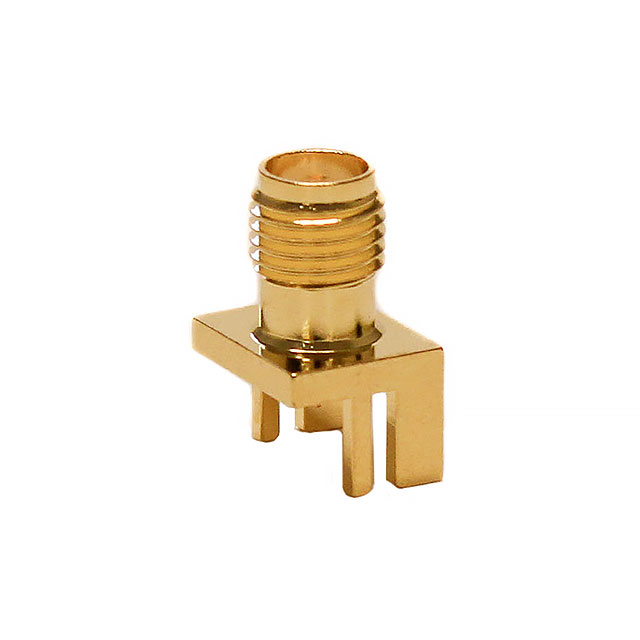

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-1420701841

Active

MUELLER ELECTRIC

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.79
		10	$ 3.09
		100	$ 2.95
		500	$ 2.85
		1000	$ 2.81
Newark	Each	1	$ 4.35

Description

General part information

BU-14 Series

SMA Connector Jack, Female Socket 50 Ohms Through Hole Solder

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Specification	BU-1420701841	BU-14 Series

Body Finish	Gold	Nickel, Gold
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMA	SMA
Connector Type	Female Socket, Jack	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz	18 - 26.5 GHz
Housing Color	Gold	Silver, Gold
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Through Hole	Board Edge, End Launch, Through Hole, Panel Mount, Through Hole, Right Angle, Right Angle, Cutout, Surface Mount
Number of Ports	1	1
Operating Temperature [Max]	165 °C	150 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder
Voltage Rating	335 V	170 - 335 V

Part	Body Finish	Frequency - Max [Max]	Body Material	Connector Style	Voltage Rating	Shield Termination	Number of Ports	Contact Termination	Connector Type	Housing Color	Center Contact Material	Mounting Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Center Contact Plating	Mounting Feature	Mating Cycles
MUELLER ELECTRIC BU-1420701806	Nickel	18 GHz	Brass	SMA	335 V	Solder	1	Solder	Female Socket, Jack	Silver	Beryllium Copper	Board Edge, End Launch	50 Ohms	-65 ░C	150 °C	Polytetrafluoroethylene (PTFE)	Gold
MUELLER ELECTRIC BU-1420701491	Gold	18 GHz	Brass	SMA	335 V	Solder	1	Solder	Female Socket, Jack	Gold	Beryllium Copper	Panel Mount, Through Hole	50 Ohms	-65 ░C	150 °C	Polytetrafluoroethylene (PTFE)	Gold	Bulkhead - Front Side Nut
MUELLER ELECTRIC BU-1420701301	Gold	18 GHz	Brass	SMA	335 V	Solder	1	Solder	Female Socket, Jack	Gold	Beryllium Copper	Through Hole, Right Angle	50 Ohms	-65 ░C	150 °C	Polytetrafluoroethylene (PTFE)	Gold
MUELLER ELECTRIC BU-1420701871	Gold	18 GHz	Brass	SMA	335 V	Solder	1	Solder	Female Socket, Jack	Gold	Beryllium Copper	Board Edge, End Launch, Panel Mount	50 Ohms	-65 ░C	150 °C	Polytetrafluoroethylene (PTFE)	Gold	Bulkhead - Front Side Nut
MUELLER ELECTRIC BU-1420761801	Gold	26.5 GHz	Brass	SMA	170 V	Solder	1	Solder	Female Socket, Jack	Gold	Beryllium Copper	Board Edge, End Launch, Panel Mount, Right Angle	50 Ohms	-65 ░C	150 °C	Polytetrafluoroethylene (PTFE)	Gold
MUELLER ELECTRIC BU-1420801811	Gold	18 GHz	Brass	SMA	335 V	Solder	1	Solder	Male Pin, Plug	Gold	Beryllium Copper	Board Edge, End Launch	50 Ohms	-65 ░C	150 °C	Polytetrafluoroethylene (PTFE)	Gold
MUELLER ELECTRIC BU-1420701841	Gold	18 GHz	Brass	SMA	335 V	Solder	1	Solder	Female Socket, Jack	Gold	Beryllium Copper	Through Hole	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold		500
MUELLER ELECTRIC BU-1420771831	Gold	18 GHz	Brass	SMA	335 V	Solder	1	Solder	Female Socket, Jack	Gold	Beryllium Copper	Board Edge, End Launch	50 Ohms	-65 ░C	150 °C	Polytetrafluoroethylene (PTFE)	Gold
MUELLER ELECTRIC BU-1420711821	Gold	18 GHz	Brass	SMA	335 V	Solder	1	Solder	Female Socket, Jack	Gold		Board Edge, End Launch	50 Ohms				Gold		500
MUELLER ELECTRIC BU-1420721881	Gold	18 GHz	Brass	SMA	335 V	Solder	1	Solder	Female Socket, Jack	Gold	Beryllium Copper	Board Edge, Cutout, Surface Mount	50 Ohms	-65 ░C	150 °C	Polytetrafluoroethylene (PTFE)	Gold
