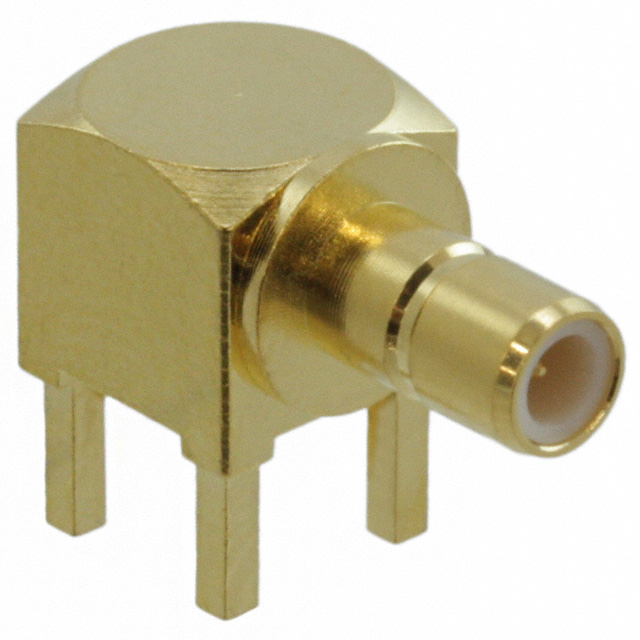

142146-11

Active

Amphenol RF

CONN SMB JACK R/A PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB JACK R/A PCB

Technical Specifications

Parameters and characteristics for this part

Specification	142146-11

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Mounting Type	Fastening Type	Dielectric Material	Body Finish	Connector Style	Contact Termination	Insertion Loss	Housing Color	Number of Ports	Center Contact Material	Mating Cycles	Shield Termination	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Connector Type
Amphenol RF 142146-11	Through Hole Right Angle	Snap-On	Polytetrafluoroethylene (PTFE)	Gold	SMB	Solder	0.6 dB	Gold	1	Brass	500	Solder	Brass	-65 ░C	165 °C	Gold	Jack Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Male Pin Through Hole, Right Angle Solder
