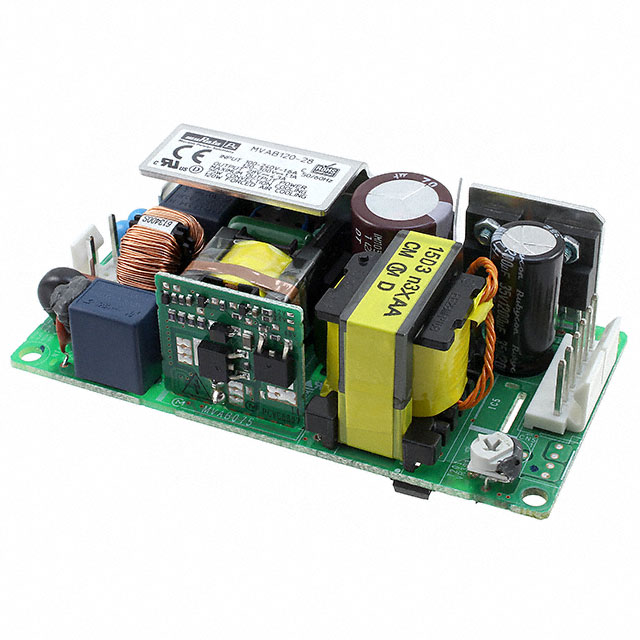

MVAB120-28

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 28V 75W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 28V 75W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 42.67

General part information

Open Frame AC DC Converters 1 Output 28V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	MVAB120-28	MVAB120 Series

Applications	ITE (Commercial)	ITE (Commercial), Medical
Approval Agency	cURus, CE, CB, DEMKO	cURus, CE, CB, DEMKO
Current - Output 1	4.29 A	2.5 - 10 A
Efficiency	90 %	88 - 91 %
Features	PFC, Universal Input	PFC, Universal Input
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Power (Watts)	75 W, 120 W	75 - 120 W
Size / Dimension	-	28.5 - 35.8 mm
Size / Dimension	-	50.8 mm
Size / Dimension [x]	4 in	4 in
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [y]	2 in	2 in
Size / Dimension [z]	34.3 mm	34.3 mm
Size / Dimension [z]	1.35 "	1.12 - 1.41 in
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	28 V	12 - 48 V

AC/DC CONVERTER 24V 75W

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Type	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Approval Agency	Mounting Type	Voltage - Isolation	Voltage - Output 1	Number of Outputs	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Features	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. MVAB120-24	-10 °C	50 °C	Open Frame	90 %	28.5 mm	1.12 in	2 in	4 in	50.8 mm	101.6 mm	ITE (Commercial)	CB, CE, cURus, DEMKO	Chassis Mount	3000 V	24 V	1	5 A	90 VAC	264 VAC	75 W, 120 W	PFC, Universal Input
Murata Power Solutions Inc. MVAB120-48	-10 °C	50 °C	Open Frame	91 %	28.5 mm	1.12 in	2 in	4 in	50.8 mm	101.6 mm	ITE (Commercial)	CB, CE, cURus, DEMKO	Chassis Mount	3000 V	48 V	1	2.5 A	90 VAC	264 VAC	75 W, 120 W	PFC, Universal Input
Murata Power Solutions Inc. MVAB120-28-01	-10 °C	50 °C	Open Frame	90 %	35.8 mm	1.41 in	2 in	4 in	50.8 mm	101.6 mm	Medical	CB, CE, cURus, DEMKO	Chassis Mount	3000 V	28 V	1	4.29 A	90 VAC	264 VAC	75 W, 120 W	PFC, Universal Input
Murata Power Solutions Inc. MVAB120-28	-10 °C	50 °C	Open Frame	90 %		1.35 "	2 in	4 in		101.6 mm	ITE (Commercial)	CB, CE, cURus, DEMKO	Chassis Mount	3000 V	28 V	1	4.29 A	90 VAC	264 VAC	75 W, 120 W	PFC, Universal Input	50.8 mm	34.3 mm
Murata Power Solutions Inc. MVAB120-12-01	-10 °C	50 °C	Open Frame	88 %	35.8 mm	1.41 in	2 in	4 in	50.8 mm	101.6 mm	Medical	CB, CE, cURus, DEMKO	Chassis Mount	3000 V	12 V	1	10 A	90 VAC	264 VAC	75 W, 120 W	PFC, Universal Input
