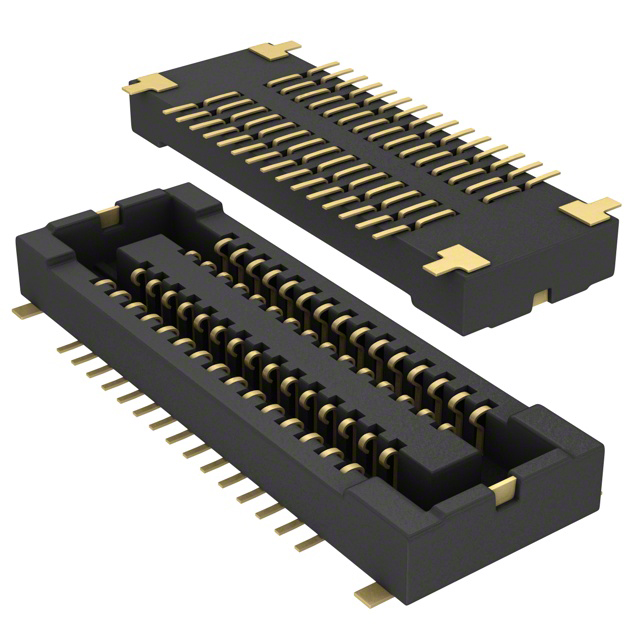

AXT532124
ObsoletePanasonic Electric Works
CONN SOCKET 32POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXT532124
ObsoletePanasonic Electric Works
CONN SOCKET 32POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXT532124 |
|---|---|
| Connector Type | Socket, Outer Shroud Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.97 mm |
| Height Above Board | 0.038 in |
| Mated Stacking Heights | 1 mm |
| Mounting Type | Surface Mount |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.07 | |
| 10 | $ 1.80 | |||
| 25 | $ 1.73 | |||
| 50 | $ 1.69 | |||
| 100 | $ 1.61 | |||
| 250 | $ 1.46 | |||
| 500 | $ 1.34 | |||
| Tape & Reel (TR) | 1000 | $ 1.15 | ||
| 2000 | $ 1.11 | |||
| 3000 | $ 1.07 | |||
Description
General part information
AXT532 Series
32 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Documents
Technical documentation and resources
