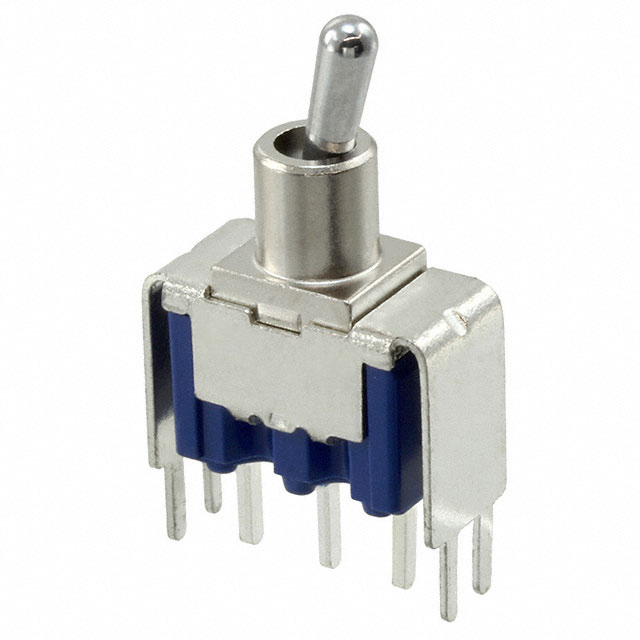

8G1012-Z
ActiveNidec Components Corporation
SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8G1012-Z
ActiveNidec Components Corporation
SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8G1012-Z |
|---|---|
| Actuator Length [x] | 6.8 mm |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | SPDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 50000 Cycles |
| Features | Washable |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.48 | |
| 10 | $ 5.84 | |||
| 25 | $ 5.55 | |||
| 50 | $ 5.31 | |||
| 100 | $ 5.14 | |||
| 250 | $ 4.87 | |||
| 500 | $ 4.50 | |||
| 1000 | $ 4.29 | |||
Description
General part information
8G1012 Series
Toggle Switch SPDT Through Hole
