TC-1A-DC-6-2

Active

Switch Components

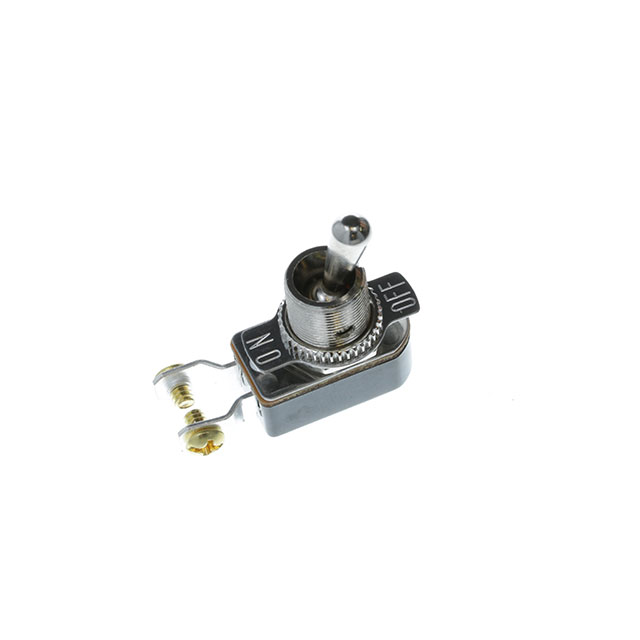

SWITCH TOGGLE SPST 6A 125V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 6A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TC-1A-DC-6-2	TC-1A Series

Actuator Length [x]	11.1 mm	9 - 11.1 mm
Actuator Type	Standard Round	Standard Round, Ball Tip
Bushing Thread	M12	M12
Bushing Thread	0.75	0.75
Circuit	SPST	SPST
Current Rating (Amps)	6 A, 6 A	6 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Off	On-Off
Termination Style	Screw Terminal	Screw Terminal, Wire Leads
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	12 V	12 V

VAC COMPACT, SPST OFF-ON, SCREW

Part	Circuit	Termination Style	Switch Function	Illumination	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Bushing Thread	Bushing Thread	Actuator Length [x]	Electrical Life	Voltage Rating - DC
Switch Components TC-1A-AC-6-2	SPST	Screw Terminal	On-Off	Non-Illuminated	6 A	Standard Round	12.2 mm	85 °C	-20 C	125 V	M12	0.75	11.1 mm
Switch Components TC-1A-DC-6-2	SPST	Screw Terminal	On-Off	Non-Illuminated	6 A, 6 A	Standard Round	12.2 mm	85 °C	-20 C	125 V	M12	0.75	11.1 mm	6000 Cycles	12 V
Switch Components TC-1A-DC-6-1	SPST	Screw Terminal	On-Off	Non-Illuminated	6 A, 6 A	Ball Tip	12.2 mm	85 °C	-20 C	125 V	M12	0.75	9 mm	6000 Cycles	12 V
Switch Components TC-1A-AC-6-1	SPST	Screw Terminal	On-Off	Non-Illuminated	6 A	Ball Tip	12.2 mm			125 V	M12	0.75	9 mm
Switch Components TC-1A-DC-W-2	SPST	Wire Leads	On-Off	Non-Illuminated	6 A	Standard Round	12.2 mm	85 °C	-20 C		M12	0.75	11.1 mm	6000 Cycles	12 V
