CCA002A

Active

Essentra Access Solutions

FASTENER, ADHESIVE BACKED CABLE CLAMP, 7.5 MM, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 28.8 MM, 13.4 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, ADHESIVE BACKED CABLE CLAMP, 7.5 MM, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 28.8 MM, 13.4 MM

Technical Specifications

Parameters and characteristics for this part

Specification	CCA002A

Adhesive	Rubber Based
Color	Black
Height [z]	0.571 in
Height [z]	14.5 mm
Length [x]	1.134 in
Length [x]	28.8 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Adhesive
Opening Size [x]	7.5 mm
Opening Size [x]	0.295 in
Screw Size	M4
Screw Size	#8
Type	C-Type, Clip
Type Attributes	Locking, Round
Width [x]	13.4 mm
Width [x]	0.528 in

Part	Width [x]	Width [x]	Height [z]	Height [z]	Type Attributes	Adhesive	Mounting Type	Screw Size	Screw Size	Opening Size [x]	Opening Size [x]	Material	Color	Type	Length [x]	Length [x]	Material Flammability Rating
Essentra Access Solutions CCA002A	13.4 mm	0.528 in	0.571 in	14.5 mm	Locking Round	Rubber Based	Adhesive	M4	#8	7.5 mm	0.295 in	Polyamide (PA66) Nylon 6/6	Black	C-Type Clip	1.134 in	28.8 mm	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

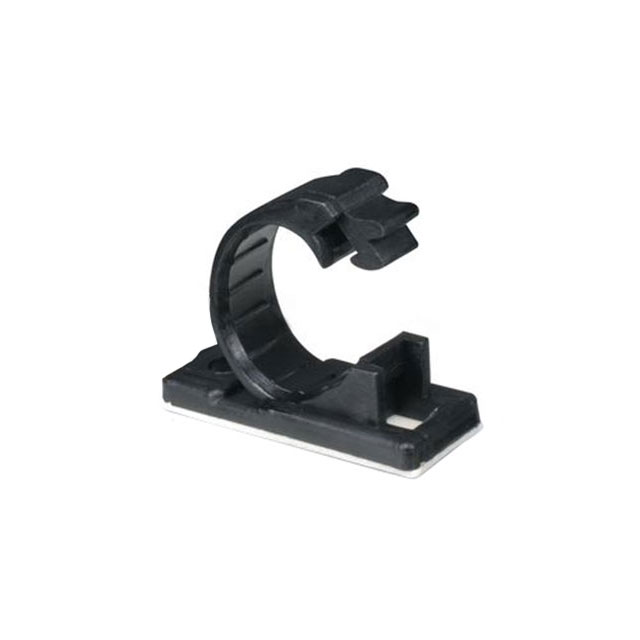

Cable Clip, C-Type Black Adhesive 0.295" (7.50mm)

Technical documentation and resources
