PF2403/8 NA005

Active

ALPHA WIRE

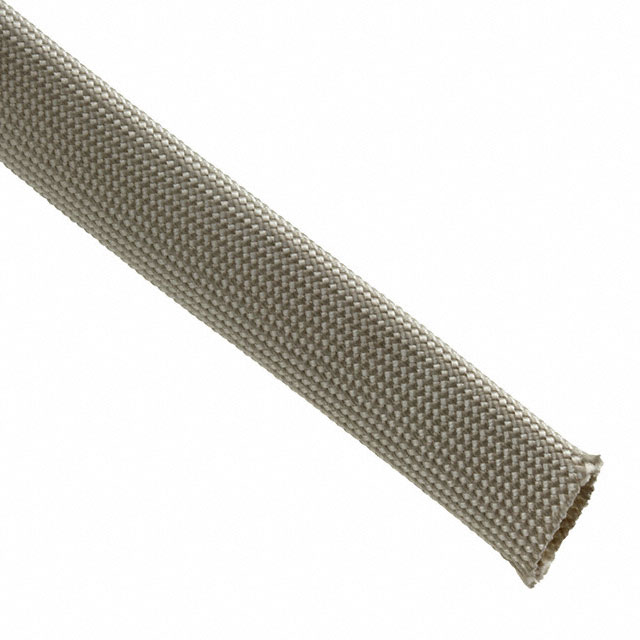

SLEEVING, BRAIDED, FIBREGLASS, NATURAL, 9.52 MM, 30.5 M, 100 FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFIT Wire Management Catalog Technical Data Sheet EN

PF2403/8 NA005

Active

ALPHA WIRE

SLEEVING, BRAIDED, FIBREGLASS, NATURAL, 9.52 MM, 30.5 M, 100 FT

Deep-Dive with AI

DocumentsFIT Wire Management Catalog Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PF2403/8 NA005

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside [diameter]	9.52 mm
Diameter - Inside [diameter]	0.375 in
Diameter - Outside [diameter]	0.431 in
Diameter - Outside [diameter]	10.95 mm
Environment Protection	Corrosion Resistant
Length	100 ft
Length	30.48 m
Material	Fiberglass
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	648 °C
Operating Temperature [Min]	-60 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness	0.016 in
Wall Thickness	0.4 mm

PF2403/8 Series

SLEEVING, BRAIDED, FIBREGLASS, NATURAL, 9.52 MM, 30.5 M, 100 FT

Part	Type Attributes	Wall Thickness	Wall Thickness	Material Flammability Rating	Abrasion Protection	Color	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Material	Environment Protection	Length	Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]
ALPHA WIRE PF2403/8 NA005	Braided	0.016 in	0.4 mm	UL VW-1	Abrasion Resistant	Natural	0.431 in	10.95 mm	Sleeving	-60 °C	648 °C	Fiberglass	Corrosion Resistant	100 ft	30.48 m	9.52 mm	0.375 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 205.74
		2	$ 189.22
		3	$ 180.18
		5	$ 169.40
		7	$ 162.65
		10	$ 155.80
		25	$ 139.48
		50	$ 135.80
Newark	Spool of 100	1	$ 236.84
		10	$ 234.45

Description

General part information

PF2403/8 Series

The PF2403/8 NA005 is an Uncoated Fiberglass Sleeving constructed with heat-annealed braided fiberglass material. This sleeving is extremely flexible and abrasion resistant. It is ideal for applications requiring operation up to 648°C. It is heat treated to remove all organic matter and it is completely compatible with all insulation and conductor types.
