NSS-4-12-01
ObsoleteEssentra Access Solutions

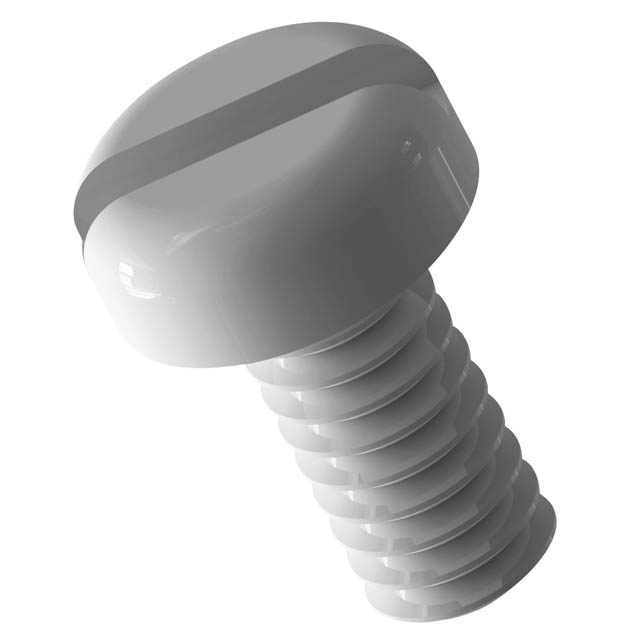

MACH SCREW PAN HEAD SLOTTED 4-40
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NSS-4-12-01
ObsoleteEssentra Access Solutions
MACH SCREW PAN HEAD SLOTTED 4-40
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NSS-4-12-01 |
|---|---|
| Drive Type | Slotted |
| Head Diameter [diameter] | 5.3 mm |
| Head Diameter [diameter] | 0.209 in |
| Head Height | 1.78 mm |
| Head Height | 0.07 in |
| Length - Below Head | 0.75 " |
| Length - Below Head | 19.05 mm |
| Length - Below Head | 0.75 " |
| Length - Overall [x] | 0.82 in |
| Length - Overall [x] | 20.83 mm |
| Material | Nylon |
| Screw Head Type | Pan Head |
| Thread Size | #4-40 |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.10 | |
| 5 | $ 0.08 | |||
| 10 | $ 0.07 | |||
| 25 | $ 0.06 | |||
| 50 | $ 0.05 | |||
| 100 | $ 0.05 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
Description
General part information
NSS-4 Series
#4-40 Pan Head Machine Screw Slotted Drive Nylon
