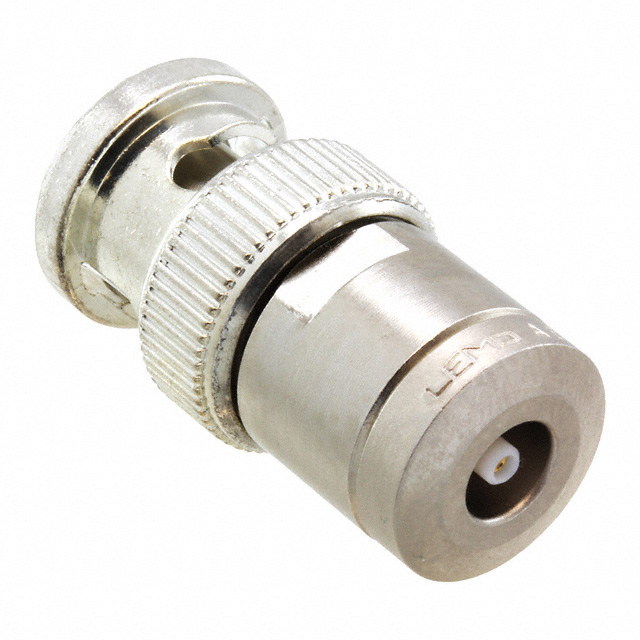

ABA.00.250.NTL

Active

LEMO

CONN ADAPT NIM-CAM JACK-BNC PLUG

Search across all available documentation for this part.

Active

LEMO

CONN ADAPT NIM-CAM JACK-BNC PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	ABA.00.250.NTL

Adapter Series	BNC to NIM-CAMAC CD/N 549
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Bronze
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	NIM-CAMAC CD/N 549 Jack, Female Socket
Convert To (Adapter End)	BNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Push-Pull
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT NIM-CAM JACK-BNC PLUG

Part	Center Contact Material	Adapter Type	Conversion Type	Adapter Series	Ingress Protection	Body Finish	Mounting Type	Body Material	Style	Fastening Type	Impedance	Center Contact Plating	Dielectric Material	Convert To (Adapter End)	Mating Cycles	Convert From (Adapter End)
LEMO ABA.00.250.NTL	Brass, Bronze	Plug to Jack	Between Series	BNC to NIM-CAMAC CD/N 549	IP50	Nickel	Free Hanging (In-Line)	Brass	Straight	Bayonet Lock, Push-Pull	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	BNC Plug, Male Pin	500	NIM-CAMAC CD/N 549 Jack, Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector NIM-CAMAC CD/N 549 Jack, Female Socket To BNC Plug, Male Pin 50 Ohms
