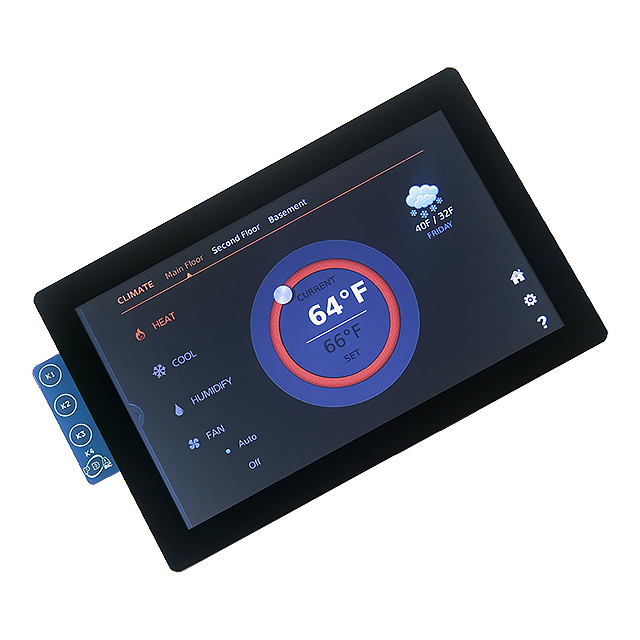

TM7000B

Active

Precision Design Associates, Inc

TOUCHSCREEN MOD 7" WITH CABLE

Search across all available documentation for this part.

Active

Precision Design Associates, Inc

TOUCHSCREEN MOD 7" WITH CABLE

Technical Specifications

Parameters and characteristics for this part

TOUCHSCREEN MOD 7" WITH CABLE

Part	Interface	Viewing Area [z]	Viewing Area [x]	Display Mode	Backlight	Dot Pitch [x]	Dot Pitch [y]	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Diagonal Screen Size	Diagonal Screen Size	Touchscreen	Graphics Color	Display Type
Precision Design Associates, Inc TM7000B	TTL	91.44 mm	152.4 mm	Transmissive	LED - White	0.06 mm	0.19 mm	WVGA	800	480	177.8 mm	7 in	Capacitive	Blue, Green, Red	TFT - Color

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color TTL 7" (177.80mm) 800 x 480 (WVGA)
