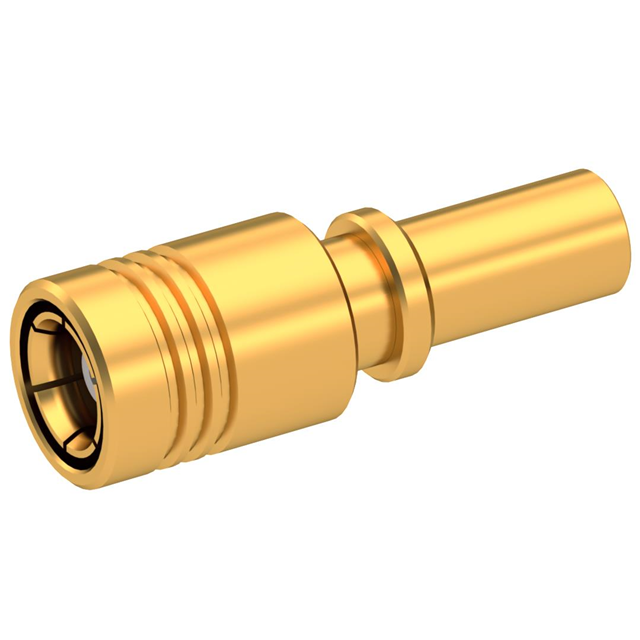

R114083000

Active

Radiall USA, Inc.

SMB F STR F CR 2.6/50D C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB F STR F CR 2.6/50D C100

Technical Specifications

Parameters and characteristics for this part

Specification	R114083000

Body Finish	Gold
Body Material	Brass
Cable Group	RD-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Body Finish	Voltage Rating	Frequency - Max [Max]	Center Contact Plating	Impedance	Cable Group	Connector Type	Mating Cycles	Connector Style	Housing Color	Body Material	Number of Ports	Dielectric Material	Center Contact Material	Fastening Type	Shield Termination	Mounting Type
Radiall USA, Inc. R114083000	-65 ░C	165 °C	Crimp	Gold	500 V	4 GHz	Gold	50 Ohms	RD-316	Female Socket Plug	500	SMB	Gold	Brass	1	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Snap-On	Crimp	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
