Description
General part information
422-035 Series

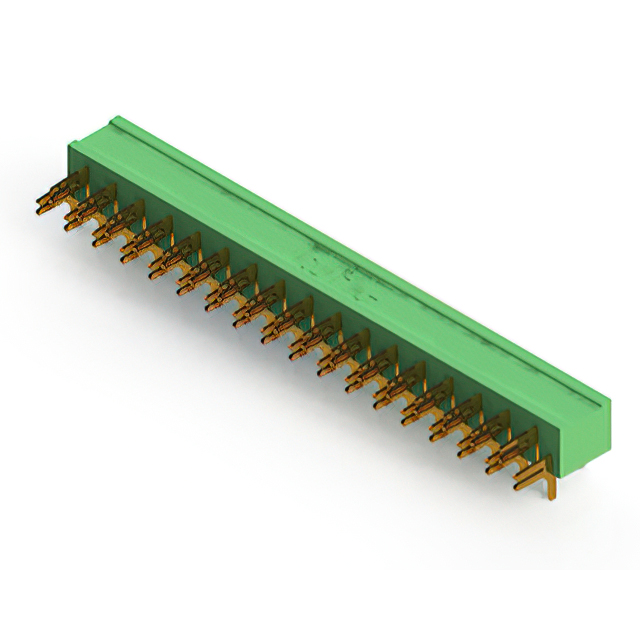

35 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
Technical Specifications
Parameters and characteristics for this part
| Specification | 422-035-521-100 |
|---|---|
| Card Thickness (Max) | 0.093 in |
| Card Thickness (Min) | 0.062 in |
| Card Type | Non Specified, Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Copper Alloy |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate, DAP |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 35 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch | 5.08 mm |
| Termination | Solder |
| Termination Rows | 2 rows |
