FGN.0F.304.XLC

Active

LEMO

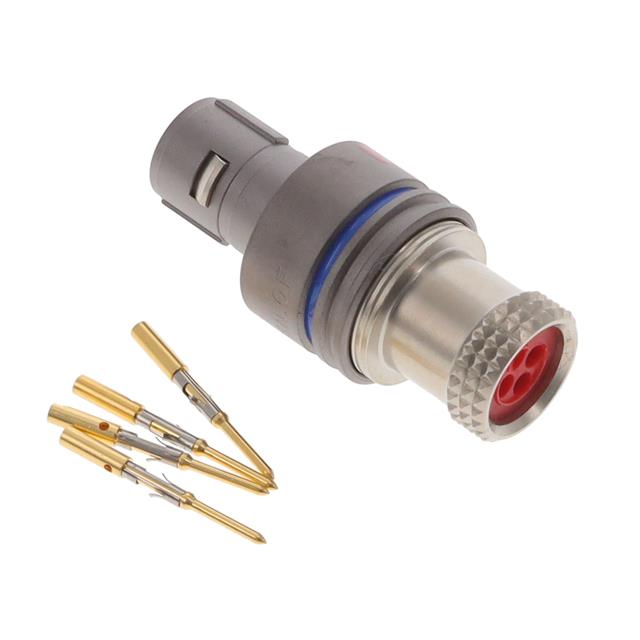

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGN.0F.304.XLC

Active

LEMO

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.43
		10	$ 54.53
		25	$ 52.43
		50	$ 50.69
		100	$ 47.89

Description

General part information

FGN.0F Series

4 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGN.0F.304.XLC	FGN.0F Series

Applications	Aerospace	Aerospace
Cable Opening [custom]	0.354 in	0.354 in
Cable Opening [custom]	9 mm	9 mm
Color	Gray	Gray, Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	7 A	6.5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	2 - 4
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-15 °C	-55 - -15 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Aluminum Alloy	Aluminum Alloy, Brass
Shell Size - Insert	304	302 - 305
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

FGN.0F Series

CONN PLUG MALE 5POS GOLD CRIMP

Part	Connector Type	Mounting Type	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Termination	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material	Current Rating (Amps)	Primary Material	Material Flammability Rating	Shielding	Orientation	Ingress Protection	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	Applications	Contact Finish - Mating	Shell Size - Insert	Number of Positions
LEMO FGN.0F.305.YLC	Male Pins, Plug	Free Hanging (In-Line)	Aluminum Alloy	1 µm	39.4 µin	Nickel	Crimp	Polyetheretherketone (PEEK)	200 °C	-15 °C	Gray	Brass	6.5 A	Metal	UL94 V-0	Shielded	N	IP67 - Dust Tight, Waterproof	Push-Pull	0.354 in	9 mm	Aerospace	Gold	305
LEMO FGN.0F.305.CLC	Male Pins, Plug	Free Hanging (In-Line)	Brass	1 µm	39.4 µin	Chrome	Crimp	Polyetheretherketone (PEEK)	200 °C	-55 °C	Silver	Brass	6.5 A	Metal	UL94 V-0	Shielded	N	IP67 - Dust Tight, Waterproof	Push-Pull	0.354 in	9 mm	Aerospace	Gold	305
LEMO FGN.0F.304.XLC	Male Pins, Plug	Free Hanging (In-Line)	Aluminum Alloy	1 µm	39.4 µin	Nickel	Crimp	Polyetheretherketone (PEEK)	200 °C	-15 °C	Gray	Brass	7 A	Metal	UL94 V-0	Shielded	N	IP67 - Dust Tight, Waterproof	Push-Pull	0.354 in	9 mm	Aerospace	Gold	304	4
LEMO FGN.0F.303.XLC	Male Pins, Plug	Free Hanging (In-Line)	Aluminum Alloy	1 µm	39.4 µin	Nickel	Crimp	Polyetheretherketone (PEEK)	200 °C	-15 °C	Gray	Brass	8 A	Metal	UL94 V-0	Shielded	N	IP67 - Dust Tight, Waterproof	Push-Pull	0.354 in	9 mm	Aerospace	Gold	303
LEMO FGN.0F.305.XLC	Male Pins, Plug	Free Hanging (In-Line)	Aluminum Alloy	1 µm	39.4 µin	Nickel	Crimp	Polyetheretherketone (PEEK)	200 °C	-15 °C	Gray	Brass	6.5 A	Metal	UL94 V-0	Shielded	N	IP67 - Dust Tight, Waterproof	Push-Pull	0.354 in	9 mm	Aerospace	Gold	305
LEMO FGN.0F.304.CLC	Male Pins, Plug	Free Hanging (In-Line)	Brass	1 µm	39.4 µin	Chrome	Crimp	Polyetheretherketone (PEEK)	200 °C	-55 °C	Silver	Brass	7 A	Metal	UL94 V-0	Shielded	N	IP67 - Dust Tight, Waterproof	Push-Pull	0.354 in	9 mm	Aerospace	Gold	304	4
LEMO FGN.0F.304.YLB	Male Pins, Plug	Free Hanging (In-Line)	Aluminum Alloy	1 µm	39.4 µin	Nickel	Crimp	Polyetheretherketone (PEEK)	200 °C	-15 °C	Gray	Brass	7 A	Metal	UL94 V-0	Shielded	N	IP67 - Dust Tight, Waterproof	Push-Pull	0.354 in	9 mm	Aerospace	Gold	304	4
LEMO FGN.0F.302.YLCF	Male Pins, Plug	Free Hanging (In-Line)	Aluminum Alloy	1 µm	39.4 µin	Nickel	Crimp	Polyetheretherketone (PEEK)	200 °C	-15 °C	Gray	Brass	10 A	Metal	UL94 V-0	Shielded	N	IP67 - Dust Tight, Waterproof	Push-Pull	0.354 in	9 mm	Aerospace	Gold	302	2
